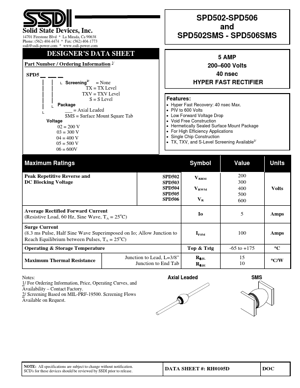

SPD502 - (SPD502 - SPD506) HYPER FAST RECTIFIER

Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com DESIGNER’S DATA SHEET Part Number / Ordering Information 1/ SPD5 __ ___ __   L Screening2/ = None  TX = TX Level  TXV = TXV Level  S = S Level  L Package L ___ = Axial Leaded SMS = Surface Mount Square Tab Voltage 02 = 200 V 03 = 300 V 04 = 400 V 05 = 500 V 06 = 600V SPD502-SPD506 and SPD502SMS - SPD506SMS.

SPD502 Features

* Hyper Fast Recovery: 40 nsec Max.

* PIV to 600 Volts

* Low Forward Voltage Drop

* Void Free Construction

* Hermetically Sealed Surface Mount Package

* For High Efficiency Applications

* Single Chip Construction

* TX, TXV, and S-Level Screening Available2/ Maximum
