SPM0520 Datasheet - CODACA

SPM0520 SMD Power Inductor

1 Appearance and dimensions (mm) 5.8±0.3 SMD Power Inductor - SPM0520 Series Outline: Small size, high rated current, low DCR. Magnetic shielded structure Lead free product, RoHS compliant. RoHS Carrier tape packing, suitable for SMT process. SMT Widely used in buck converter, laptop, displayer, network communication equipment, and etc. Operating temperature : -40 +125 (Including coil’s temperature rise) -40 +125 ( ) 2.0±0.3 4.0 5.4±0.3 2 Marking Marking 2.0 0.8 5.2±0.3 3 Reference .

SPM0520 Datasheet (1.52 MB)

Preview of SPM0520 PDF

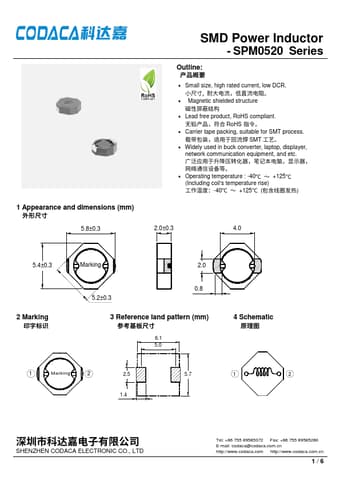

SPM0520 Datasheet Preview Page 2 SPM0520 Datasheet Preview Page 3

Datasheet Details

Part number:

SPM0520

Manufacturer:

CODACA

File Size:

1.52 MB

Description:

Smd power inductor.
