SPM0406HE3H-SB Datasheet - Knowles Electronics

SPM0406HE3H-SB - Differential SiSonic Microphone

Non-inverting Output Signal Inverting Output Signal Connect resistor to set gain Ground Ground Power Supply Notes: Pick Area only extends to 0.25 mm of any edge or hole unless otherwise specified.

Dimensions are in millimeters unless otherwise specified.

Tolerance is ±0.15mm unless otherwise specif

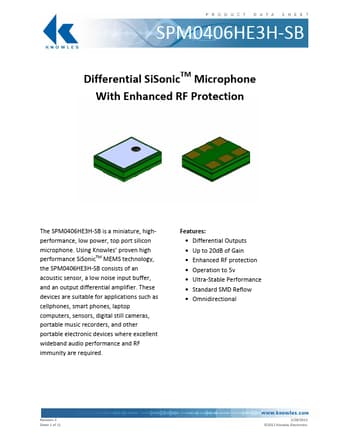

SPM0406HE3H-SB Differential SiSonicTM Microphone With Enhanced RF Protection The SPM0406HE3H-SB is a miniature, highperformance, low power, top port silicon microphone.

Using Knowles’ proven high performance SiSonicTM MEMS technology, the SPM0406HE3H-SB consists of an acoustic sensor, a low noise input buffer, and an output differential amplifier.

These devices are suitable for applications such as cellphones, smart phones, laptop computers, sensors, digital still cameras, portable music record

SPM0406HE3H-SB Features

* Differential Outputs

* Up to 20dB of Gain

* Enhanced RF protection

* Operation to 5v

* Ultra-Stable Performance

* Standard SMD Reflow

* Omnidirectional Revision: E Sheet 1 of 11 2/28/2013 ©2012 Knowles Electronics SPM0406HE3H-SB 1. ABSOLUTE MAXIMUM RATINGS Paramet

SPM0406HE3H-SB-KnowlesElectronics.pdf

Preview of SPM0406HE3H-SB PDF
SPM0406HE3H-SB Datasheet Preview Page 2 SPM0406HE3H-SB Datasheet Preview Page 3

Datasheet Details

Part number:

SPM0406HE3H-SB

Manufacturer:

Knowles Electronics

File Size:

866.03 KB

Description:

Differential sisonic microphone.
