* Resistant to Ambient Environmental Conditions
* Housing Material : ABS Plastic
* Construction : Thermo Resist Epoxy Encapsulated
* Wires : #16 AWG Stranded Copper
* Mechanical Stress Resistant
* Limited Anti Vibration Feature
* Reverse Polari
PD6010
COMUS
384.16 KB
Power tilt switch.

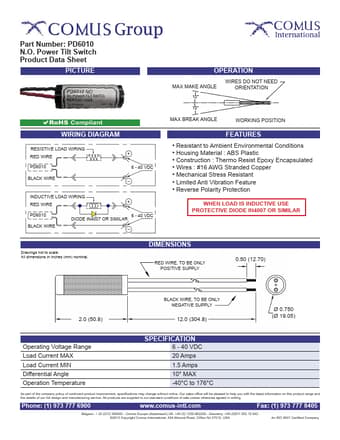

Part Number: PD6010 N.O. Power Tilt Switch Product Data Sheet
WIRING DIAGRAM
RESISTIVE LOAD WIRING RED WIRE PD6010 BLACK WIRE
6 - 40 VDC
IN.
