PD600BA - N-Channel MOSFET

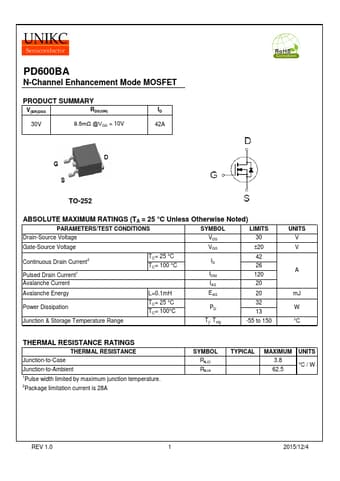

PD600BA N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) 30V 9.5mΩ @VGS = 10V ID 42A TO-252 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS 30 Gate-Source Voltage VGS ±20 Continuous Drain Current2 Pulsed Drain Current1 TC= 25 °C TC= 100 °C ID IDM 42 26 120 Avalanche Current IAS 20 Avalanche Energy L=0.1mH EAS 20 Power Dissipation TC= 25 °C TC= 100°C PD 32 13 Junction & St.

PD600BA-UNIKC.pdf

PD600BA Datasheet Preview — Preview of PD600BA PDF

Datasheet Details

Part number:

PD600BA

Manufacturer:

UNIKC

File Size:

726.46 KB

Description:

N-channel mosfet.
