CN2302 Datasheet, Mosfet, CONSONANCE

CN2302 Features

  • Mosfet
  • VDS = 20V,ID = 2.9A RDS(ON) < 59mΩ @ VGS=2.5V RDS(ON) < 45mΩ @ VGS=4.5V
  • High power and current handing capability
  • Available in 3 pin SOT23 Package

PDF File Details

Part number:

CN2302

Manufacturer:

CONSONANCE

File Size:

700.20kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mosfet. The CN2302 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as

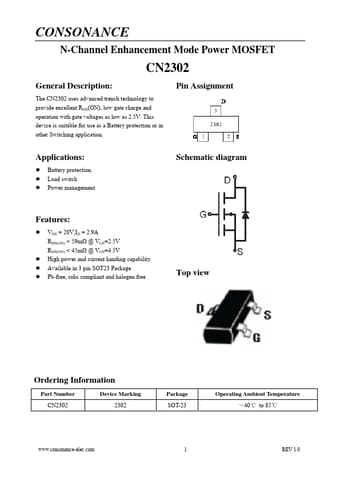

Datasheet Preview: CN2302 📥 Download PDF (700.20kb)
Page 2 of CN2302 Page 3 of CN2302

CN2302 Application

  • Applications
  • Battery protection
  • Load switch
  • Power management Schematic diagram Features:
  • VDS = 20V,ID = 2
