CN2305

P-Channel Enhancement Mode Power MOSFET

CN2305 Features

* VDS = -20V,ID = -4.1A RDS(ON) < 75mΩ @ VGS=-2.5V RDS(ON) < 52mΩ @ VGS=-4.5V

* High power and current handing capability

* Lead free product is acquired

* Surface mount package

* Available in 3 pin SOT23 Package

* Pb-free, rohs compliant and halogen free Top view Ordering

CN2305 General Description

The CN2305 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a load switch or in PWM applications. Applications:
* Battery protection
* Load switch
* Power management Pin Ass.

CN2305 Datasheet (653.11 KB)

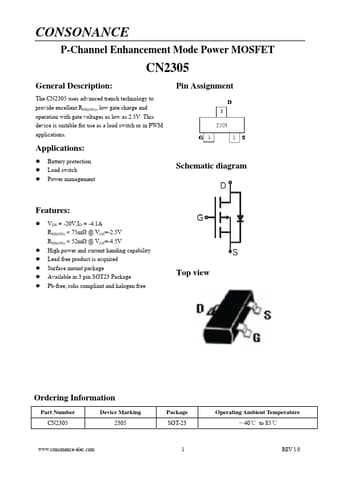

Preview of CN2305 PDF

Datasheet Details

Part number:

CN2305

Manufacturer:

CONSONANCE

File Size:

653.11 KB

Description:

P-channel enhancement mode power mosfet.
