CN3305 - PFM Step-up Multi-cell Battery Charger

CN3305 Description

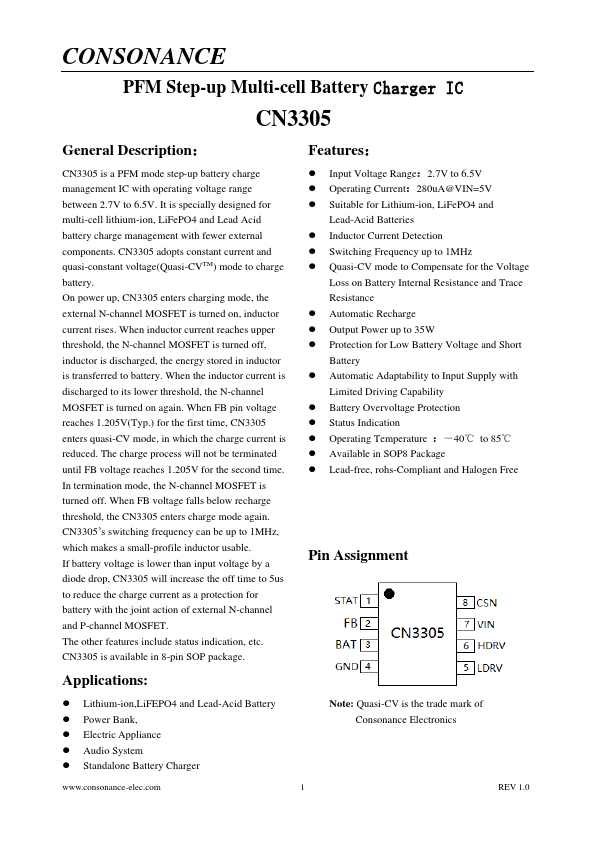

CONSONANCE PFM Step-up Multi-cell Battery Charger IC CN3305 General .
Features： CN3305 is a PFM mode step-up battery charge management IC with operating voltage range between 2.

CN3305 Features

* CN3305 is a PFM mode step-up battery charge management IC with operating voltage range between 2.7V to 6.5V. It is specially designed for multi-cell lithium-ion, LiFePO4 and Lead Acid battery charge management with fewer external components. CN3305 adopts constant current and quasi-constant voltag

CN3305 Applications

* Lithium-ion,LiFEPO4 and Lead-Acid Battery
* Power Bank,
* Electric Appliance
* Audio System

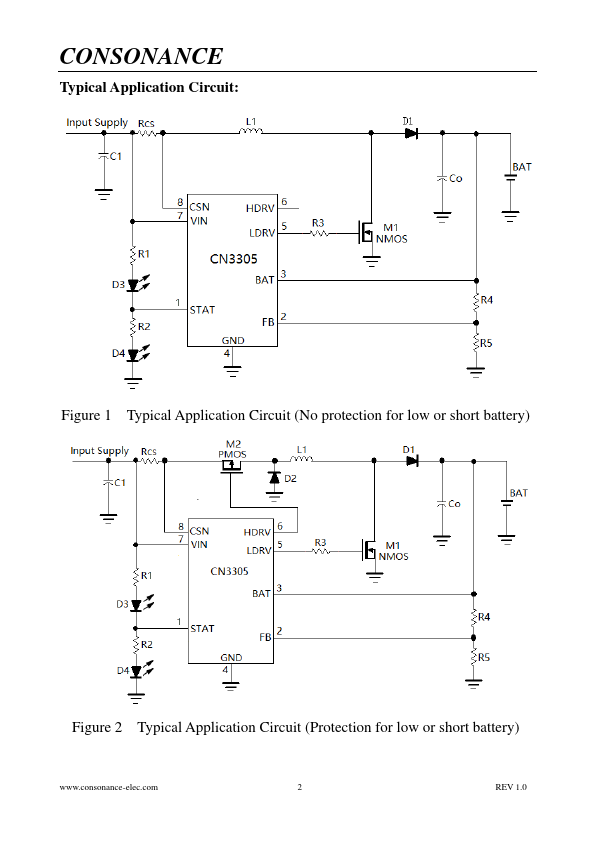

* Standalone Battery Charger Note: Quasi-CV is the trade mark of Consonance Electronics www. consonance-elec. com 1 REV 1.0 CONSONANCE Typical Application Circuit: Figure 1 Typical

📥 Download Datasheet

Preview of CN3305 PDF

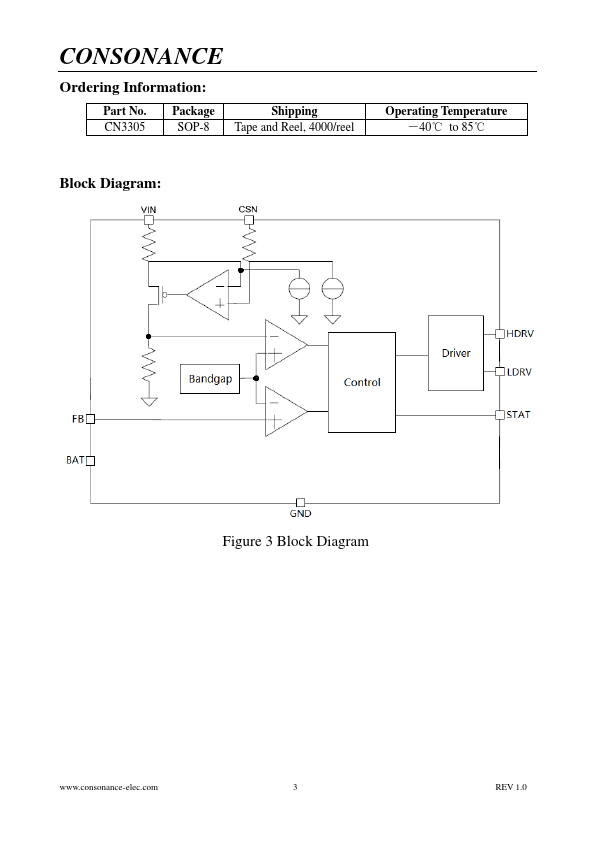

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CN3305
Manufacturer
CONSONANCE
File Size
348.91 KB
Datasheet
CN3305-CONSONANCE.pdf
Description
PFM Step-up Multi-cell Battery Charger
