CN3306 Datasheet - CONSONANCE

CN3306 Step-up Multi-Chemistry Battery Charger

The CN3306 is PWM mode step-up multi-chemistry battery charger IC. Its input voltage range is from 4.5V to 32V, also can be powered by photovoltaic cell with MPPT function. The CN3306 is ideal for lithium ion battery, LiFePO4 battery and Titanate Battery’s charge management with few external compon.

CN3306-CONSONANCE.pdf

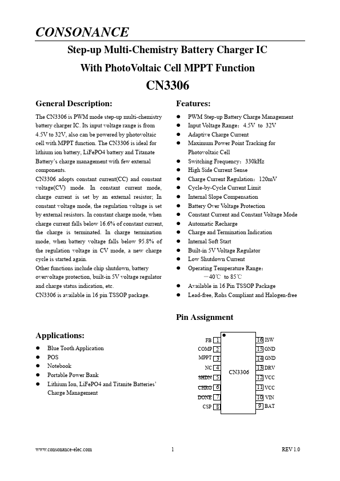

Preview of CN3306 PDF
CN3306 Datasheet Preview Page 2 CN3306 Datasheet Preview Page 3

Datasheet Details

Part number:

CN3306

Manufacturer:

CONSONANCE

File Size:

373.63 KB

Description:

Step-up multi-chemistry battery charger.
