Part number: CN5120
Manufacturer: CONSONANCE
File Size: 325.48KB
Download: 📄 Datasheet
Description: 4.5V to 32V Input Current Mode Boost DC-DC Controller
include chip shutdown, over voltage protection, built-in 5V regulator and slope compensation, etc. The CN5120 is available in 10-pin SSOP package.
Applications:
* TFT.
* TFT-LCD Bias Supplies
* XDSL Power Supplies
* Medical Equipments
* Digital Video Cameras
* Portab.

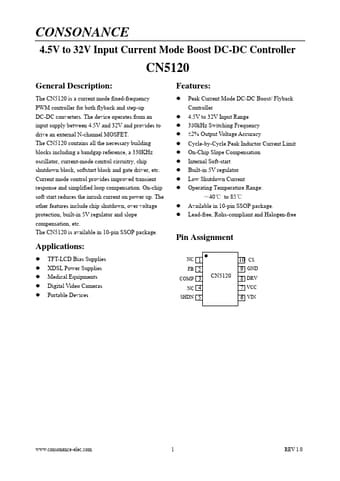

The CN5120 is a current mode fixed-frequency PWM controller for both flyback and step-up DC-DC converters. The device operates from an input supply between 4.5V and 32V and provides to drive an external N-channel MOSFET. The CN5120 contains all the .
