CN5136 - 500mA PFM Step-Up DC-DC Controller

CN5136 Description

CONSONANCE 500 mA PFM Step-Up DC-DC Controller CN5136 General .
CN5136 is a high-efficiency pulse frequency modulation (PFM) DC-DC converter, and the maximum output current capability is up to 500mA.

CN5136 Features

* include the maximum inductor current limit, soft-start circuit. CN5136 output voltage can be set by external resistors. High accuracy on-chip voltage reference ensures the accuracy of the output voltage and low temperature drift. CN5136 can operate from the voltage of 2.7V to 6V, which is very suita

CN5136 Applications

* The device is available in 5 pin SOT23 package and is fully specified over the -40°C to +85°C extended temperature range. Applications
* Mobile power
* PDA and other portable products
* Electric toys

📥 Download Datasheet

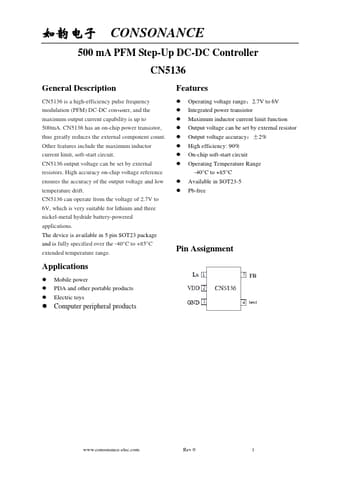

Preview of CN5136 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CN5136
Manufacturer
CONSONANCE
File Size
160.97 KB
Datasheet
CN5136-CONSONANCE.pdf
Description
500mA PFM Step-Up DC-DC Controller
