KPC452 - 4PIN MINI-FLAT PHOTODARLINGTON PHOTOCOUPLER

COSMO Electronics

KPC452 Description

cosmo KPC452 Series 4PIN MINI-FLAT PHOTODARLINGTON PHOTOCOUPLER * .
The KPC452 consist of a photo darlington optically coupled to a gallium arsenide infrared-emitting diodes in a 4-pin Mini-Flat package.

KPC452 Features

* 1. Halogen free 2. Pb free and RoHS compliant 3. Mini-flat package: compact 4 pin SOP with a 2.0mm profile 4. High collector-emitter voltage (VCEO : 300V) 5. High current transfer ratio (CTR : MIN.1000% at IF =1mA,VCE =2V) 6. High isolation voltage between input and output (Viso:3750Vrms) 7. MSL cla

KPC452 Applications

* Telephone sets
* Copiers, facsimiles
* Interfaces with various power supply circuits, power distribution boards
* Hybrid substrates which require high density mounting Cosmo Electronics Corp. Document No. 69P04006.2 -1- http://www. cosmo-ic. com cosmo
* Outsid

📥 Download Datasheet

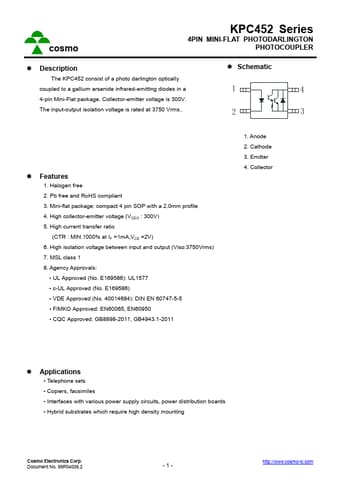

KPC452 Datasheet Preview — Preview of KPC452 PDF

Datasheet Details

Part number: KPC452
Manufacturer: COSMO Electronics
File Size: 207.71 KB
Datasheet: KPC452_COSMOElectronics.pdf
Description: 4PIN MINI-FLAT PHOTODARLINGTON PHOTOCOUPLER
