KPC4N33, 6PIN PHOTODARLINGTON PHOTOCOUPLER

cosmo z .
The KPC4N33 series consist of an arsenide infrared-emitting diode in a 6-pin DIP package and available in wide-lead spacing and SMD option.

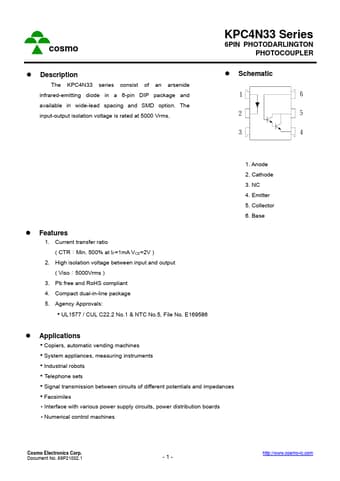

datasheet Preview Page 1 from Datasheet4u.com

KPC4N33_COSMOElectronics.pdf

KPC4N33 Datasheet Preview — Preview of KPC4N33 PDF

Datasheet Details

Part number:

KPC4N33

Manufacturer:

COSMO Electronics

File Size:

250.89 KB

Description:

6PIN PHOTODARLINGTON PHOTOCOUPLER

Features

* 1. Current transfer ratio ( CTR：Min. 500% at IF=1mA VCE=2V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Pb free and RoHS compliant 4. Compact dual-in-line package 5. Agency Approvals:
* UL1577 / CUL C22.2 No.1 & NTC No.5, File No. E169586 1. Anode 2. Cathode 3.

Applications

* Copiers, automatic vending machines
* System appliances, measuring instruments
* Industrial robots
* Telephone sets
* Signal transmission between circuits of different potentials and impedances
* Facsimiles
* Interface with various power supp
