KPS2801

4PIN SSOP PHOTOTRANSISTOR PHOTOCOUPLER

COSMO Electronics

KPS2801 Features

* 1. Halogen free 2. Pb free and RoHS compliant 3. High isolation voltage (VISO=3750Vrms) 4. Small and thin package(4pin SSOP, pin pitch 1.27mm) 5. High collector to emitter voltage(VCEO=80V) 6. High-speed switching tr =3μs (typ.), tf =5μs (typ.) 7. MSL class 1 8. Agency Approvals:

* UL Approv

KPS2801 General Description

The KPS2801 series is DC-input single channel which contains a light emitting diode optically coupled to a phototransistor. It is packaged in a 4-pin SSOP package. The input-output isolation voltage is rated at 3750Vrms. KPS2801 Series 4PIN SSOP PHOTOTRANSISTOR PHOTOCOUPLER
* Schematic 14 23 <.

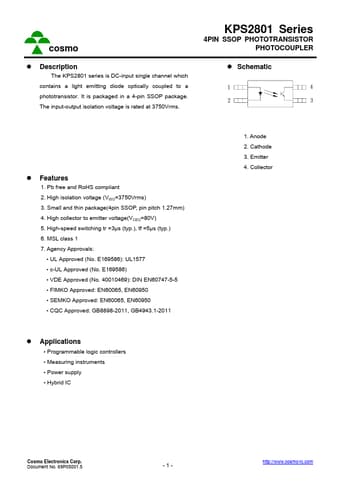

KPS2801 Datasheet (252.73 KB)
