KPS28010W

4 Pin SSOP Low Input Current Photocoupler

KPS28010W Features

* 1.Halogen Free. 2.Pb free and RoHS compliant. 3.High isolation voltage(BV=3750Vrms). 4.Small and thin package(4pin SOP,Pin pitch 1.27mm). 5. Low input current type (IF=0.5mA). 6.Current transfer ratio (CTR : 100~600% at IF=0.5mA Vce=5V) 7.High collector to emitter voltage(VCEO=80V). 8.High-speed swi

KPS28010W General Description

and is subject to change without notice. Please contact cosmo in order to obtain the latest device data sheets before using any cosmo device. cosmo does not assume any responsibility for use of any circuitry described. No circuit patent licenses are implied. This publication is the property of cosmo.

KPS28010W Datasheet (159.56 KB)

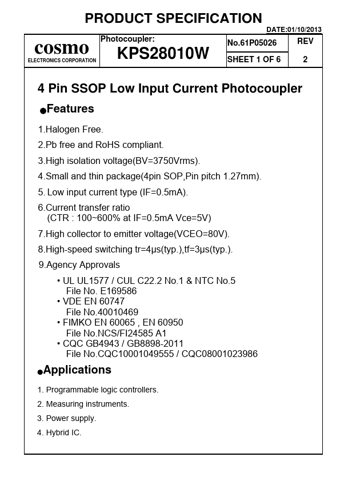

Preview of KPS28010W PDF

Datasheet Details

Part number:

KPS28010W

Manufacturer:

COSMO Electronics

File Size:

159.56 KB

Description:

4 pin ssop low input current photocoupler.
PRODUCT SPECIFICATION DATE:01/10/2013 cosmo Photocoupler: KPS28010W ELECTRONICS CORPORATION No.61P05026 SHEET 1 OF 6 REV 2 4 Pin SSOP Low Input C.
