CRG20T65R85SDZ-G Silicon FS Trench IGBT

CR Micro

Description

Silicon FS Trench IGBT CRG20T65R85SDZ-G General .
Using micro trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

📥 Download Datasheet

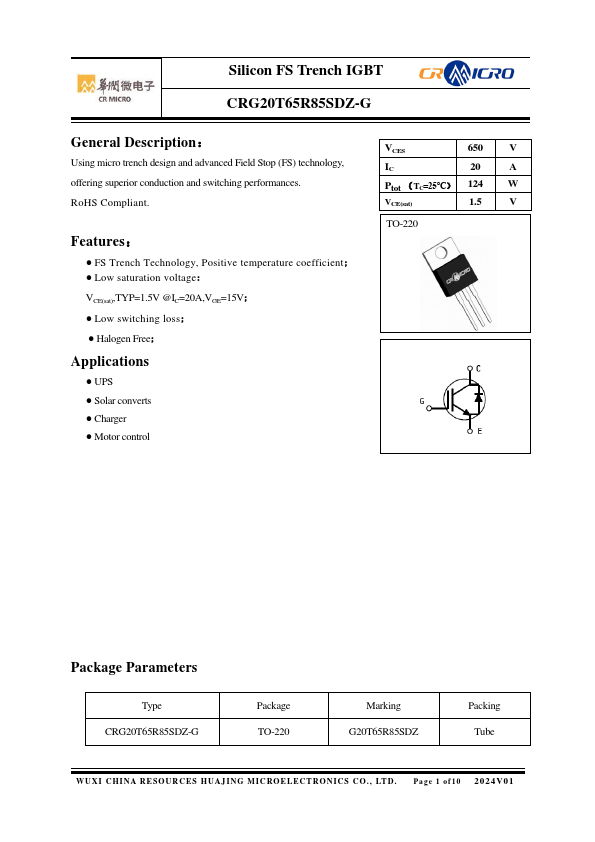

CRG20T65R85SDZ-G Datasheet Preview — Preview of CRG20T65R85SDZ-G PDF

Datasheet Specifications

Part number: CRG20T65R85SDZ-G
Manufacturer: CR Micro
File Size: 1.26 MB
Datasheet: CRG20T65R85SDZ-G-CRMicro.pdf
Description: Silicon FS Trench IGBT

Features

* FS Trench Technology, Positive temperature coefficient；
* Low saturation voltage： VCE(sat),TYP=1.5V @IC=20A,VGE=15V；
* Low switching loss；

Applications

* UPS
* Solar converts
* Charger
* Motor control VCES 650 V IC 20 A Ptot （TC=25℃） 124 W VCE(sat) 1.5 V TO-220 Package Parameters Type CRG20T65R85SDZ-G Package TO-220 Marking G20T65R85SDZ Packing Tube WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO. , LTD. Page 1 of 10
