Key Features
n Thick film resistors with a high power to size ratio,ideally suited to industrial and general purpose use. A range from 1 ohm to 10M and tolerances of 1% and 5%. Also including zero ohm links.
n Suitable for most applications, including high frequency operation, owing to the short lead structure and low capacitance.
n Seven Package Sizes
n Terminal finish: Matte Sn
n MSL Level 2

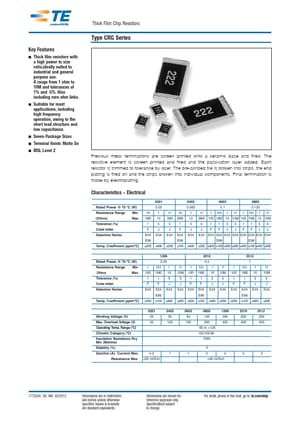

Thick Film Chip Resistors
Type CRG Series
Precious metal terminations are screen printed onto a ceramic base and fired. The resistive element is screen printed and fired and the passivation layer added. Each resistor is trimmed to tolerance by laser. The pre-scribed tile is broken into strips, the end plating is fired on and the strips broken into individual components.
CRG0402 Datasheet
