CRG25T135BKR3S, Silicon FS Trench IGBT

Silicon FS Trench IGBT CRG25T135BKR3S General .
Using CRM's proprietary trench design, advanced FS(field stop) technology and integrated with Free Wheeling Diode, the 1350V Trench FS IGBT offers su.

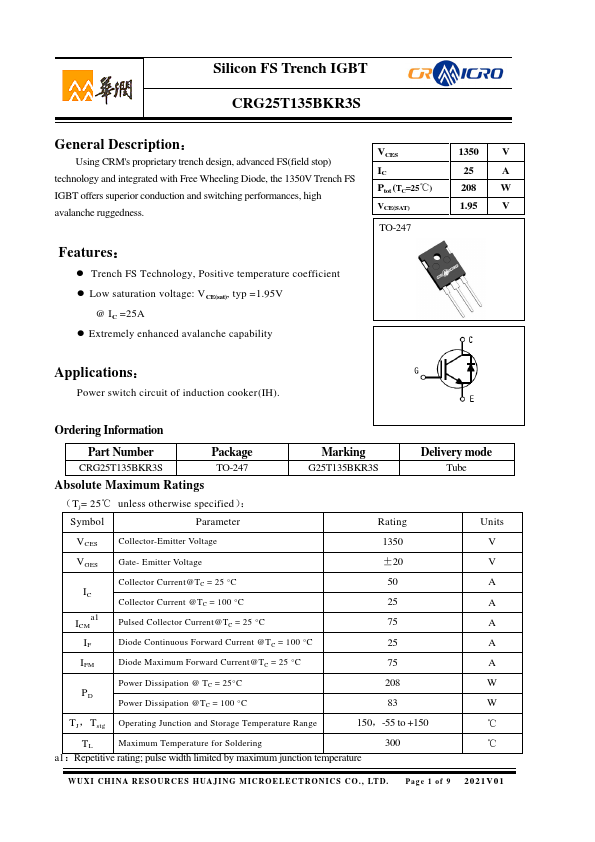

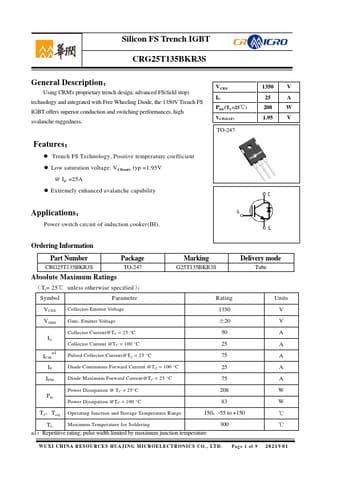

datasheet Preview Page 1 from Datasheet4u.com

CRG25T135BKR3S-CRMicro.pdf

CRG25T135BKR3S Datasheet Preview — Preview of CRG25T135BKR3S PDF

Datasheet Details

Part number:

CRG25T135BKR3S

Manufacturer:

CR Micro

File Size:

859.31 KB

Description:

Silicon FS Trench IGBT

Features

* Trench FS Technology, Positive temperature coefficient
* Low saturation voltage: VCE(sat), typ =1.95V @ IC =25A

Applications

* Power switch circuit of induction cooker(IH). Ordering Information Part Number CRG25T135BKR3S Package TO-247 Absolute Maximum Ratings （Tj= 25℃ unless otherwise specified）： Symbol Parameter Marking G25T135BKR3S Delivery mode Tube Rating Units VCES Collector-Emitter Voltage 1350 V VGES
