CRG40T65RK5SDZ Silicon FS Trench IGBT

CR Micro

Description

Silicon FS Trench IGBT CRG40T65RK5SDZ General .
Using micro trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

📥 Download Datasheet

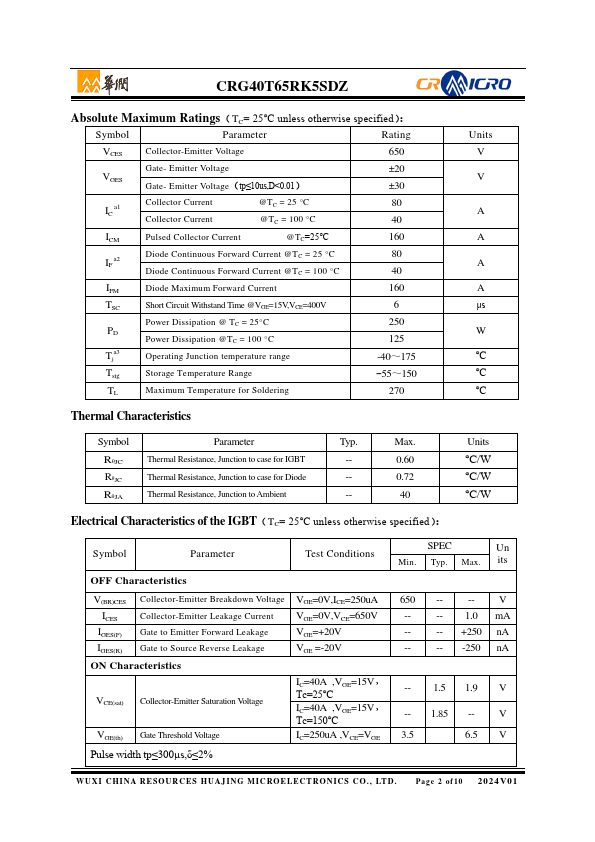

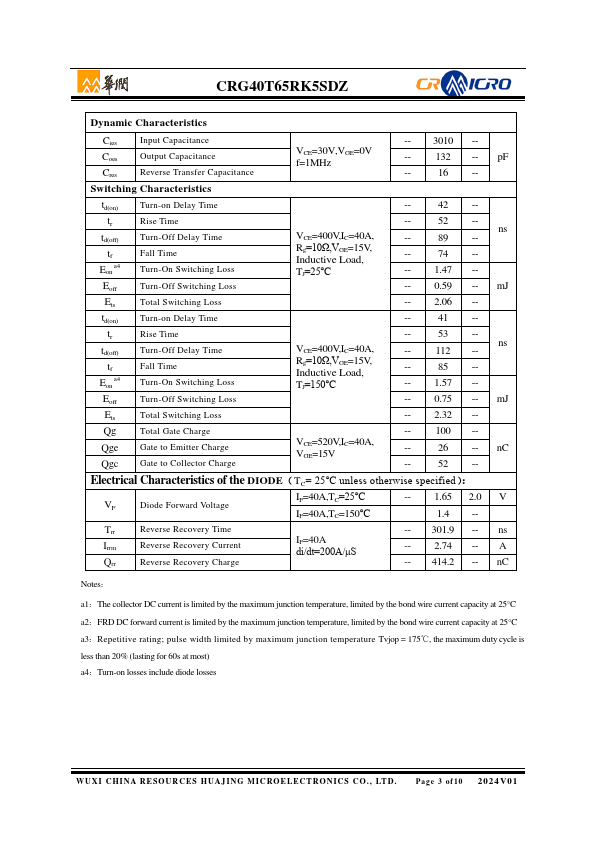

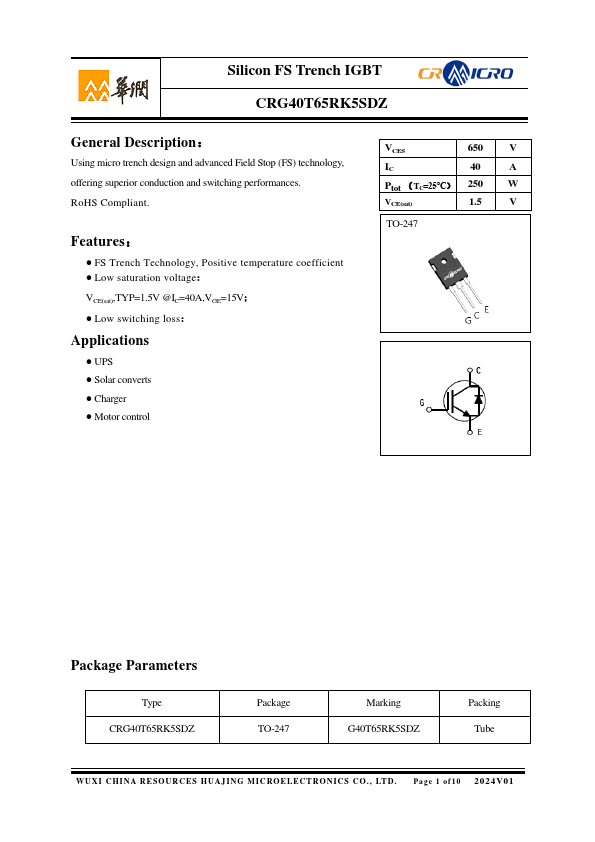

CRG40T65RK5SDZ Datasheet Preview — Preview of CRG40T65RK5SDZ PDF

Datasheet Specifications

Part number: CRG40T65RK5SDZ
Manufacturer: CR Micro
File Size: 1.19 MB
Datasheet: CRG40T65RK5SDZ-CRMicro.pdf
Description: Silicon FS Trench IGBT

Features

* FS Trench Technology, Positive temperature coefficient
* Low saturation voltage： VCE(sat),TYP=1.5V @IC=40A,VGE=15V；

Applications

* UPS
* Solar converts
* Charger
* Motor control VCES 650 V IC 40 A Ptot （TC=25℃） 250 W VCE(sat) 1.5 V TO-247 Package Parameters Type CRG40T65RK5SDZ Package TO-247 Marking G40T65RK5SDZ Packing Tube WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO. , LTD. Page 1 of 10 20
