CRG75T120CX3SD Datasheet - CR Micro

CRG75T120CX3SD Silicon FS Trench IGBT

Using owner proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances. Ro HS Comp liant . Fe atures： * Short Circuit Withs tand Time 10μs * FS Tren ch Technology, Positive t emp erature coefficient * Lo w s at uration volt.

CRG75T120CX3SD Datasheet (0.98 MB)

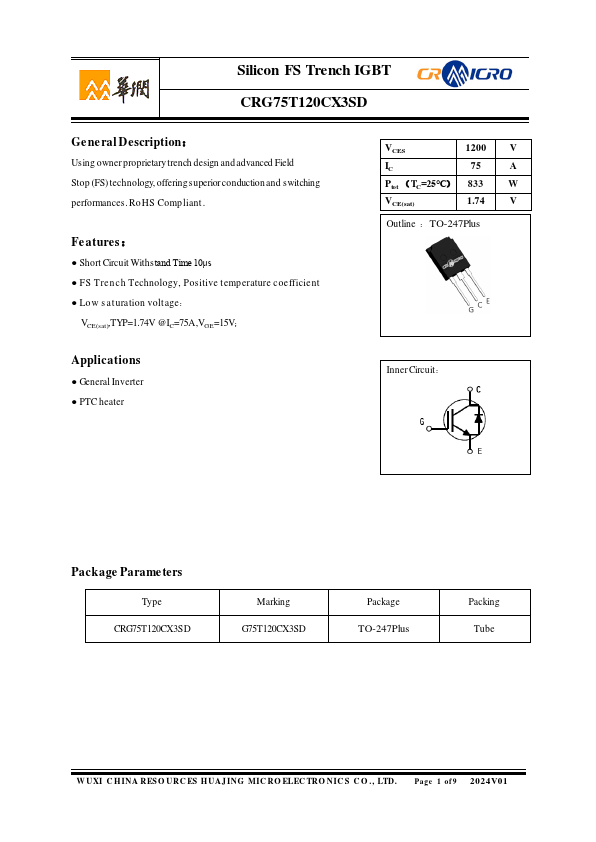

Preview of CRG75T120CX3SD PDF

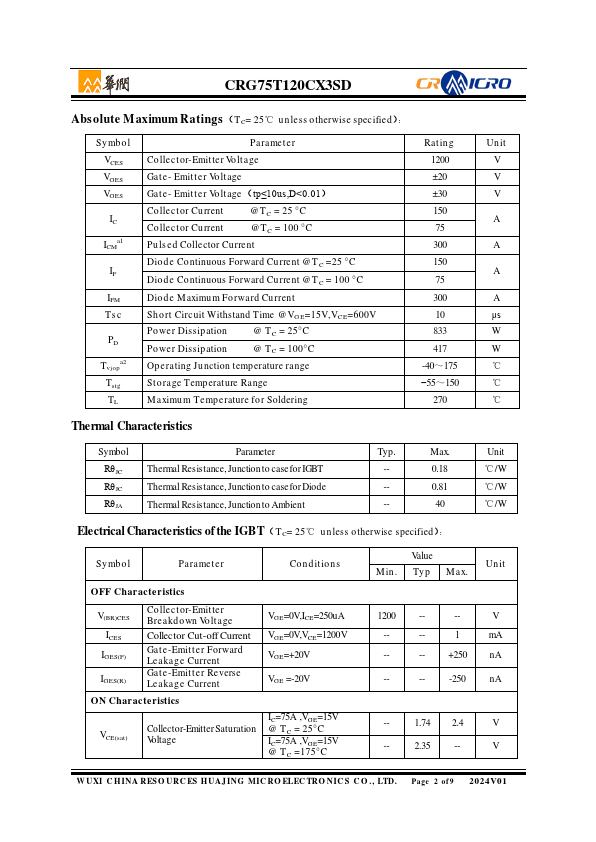

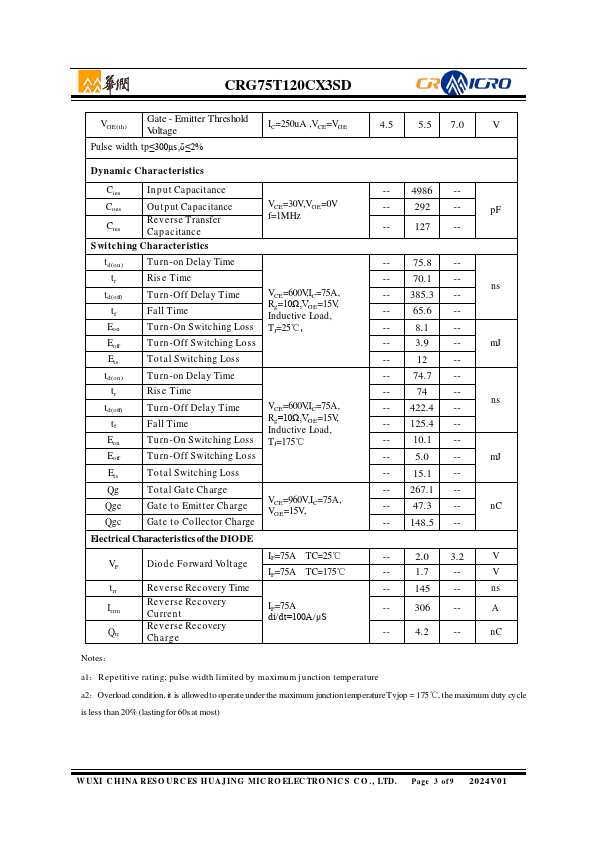

CRG75T120CX3SD Datasheet Preview Page 2 CRG75T120CX3SD Datasheet Preview Page 3

Datasheet Details

Part number:

CRG75T120CX3SD

Manufacturer:

CR Micro

File Size:

0.98 MB

Description:

Silicon fs trench igbt.
