CRJQ125N65G2BF, 650V SJMOS N-MOSFET

() CRJQ125N65G2BF SJMOS N-MOSFET 650V, 103mΩ, 27A .

datasheet Preview Page 1 from Datasheet4u.com

CRJQ125N65G2BF-CRMicro.pdf

CRJQ125N65G2BF Datasheet Preview — Preview of CRJQ125N65G2BF PDF

Datasheet Details

Part number:

CRJQ125N65G2BF

Manufacturer:

CR Micro

File Size:

1.01 MB

Description:

650V SJMOS N-MOSFET

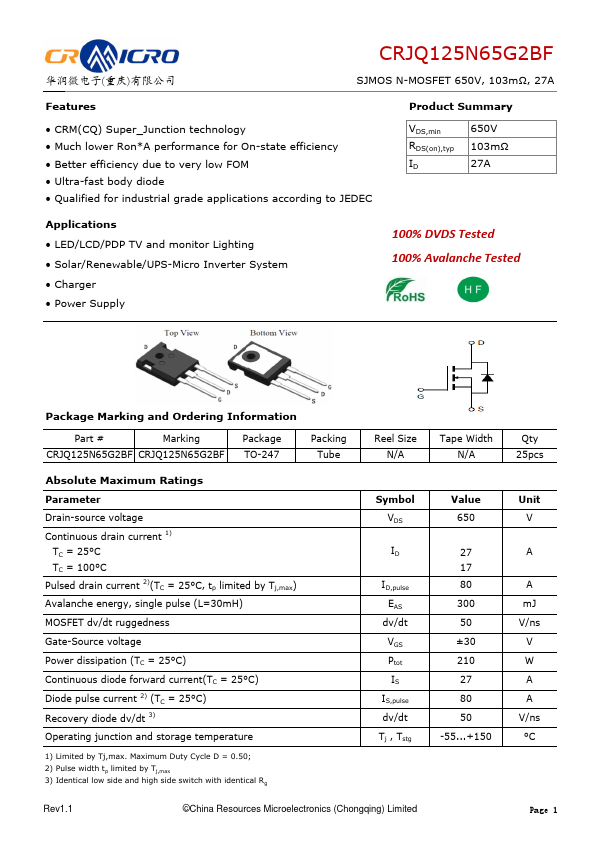

Features

* CRM(CQ) Super_Junction technology
* Much lower Ron
* A performance for On-state efficiency
* Better efficiency due to very low FOM
* Ultra-fast body diode

Applications

* according to JEDEC Product Summary VDS,min RDS(on),typ ID 650V 103mΩ 27A Applications
* LED/LCD/PDP TV and monitor Lighting
* Solar/Renewable/UPS-Micro Inverter System
* Charger
* Power Supply 100% DVDS Tested 100% Avalanche Tested Package Marking and Ordering I
