8.0SMDJ26CA, 8.0SMDJ12A Power TVS

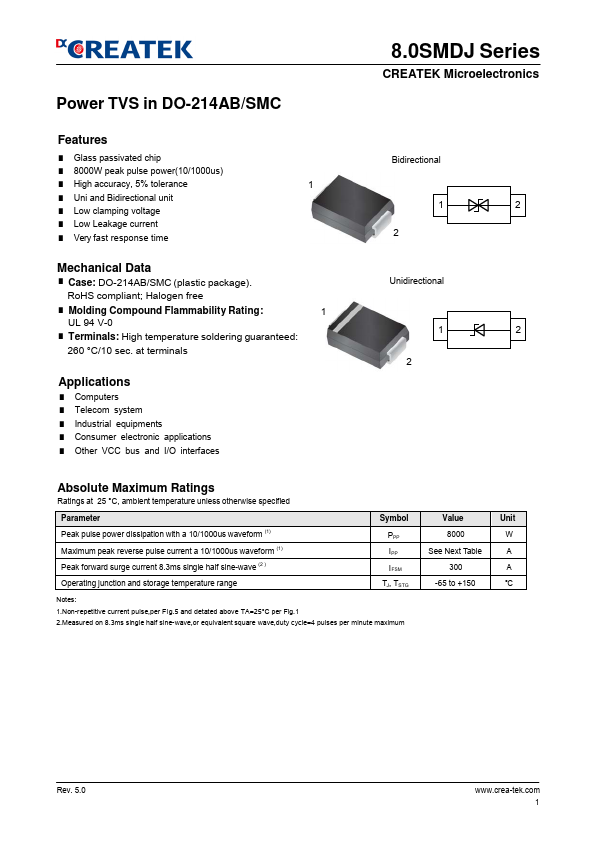

8.0SMDJ26CA Description

Power TVS in DO-214AB/SMC 8.0SMDJ Series CREATEK Microelectronics .

8.0SMDJ26CA Features

* Glass passivated chip
* 8000W peak pulse power(10/1000us)
* High accuracy, 5% tolerance
* Uni and Bidirectional unit
* Low clamping voltage
* Low Leakage current
* Very fast response time Bidirectional 1 1 2 2 Mechanical Data
* Case: DO-214AB/SMC (plastic pac

8.0SMDJ26CA Applications

* Computers
* Telecom system
* Industrial equipments
* Consumer electronic applications
* Other VCC bus and I/O interfaces Absolute Maximum Ratings Ratings at 25 °C, ambient temperature unless otherwise specified Parameter Symbol Peak pulse power dissipation with a 10/1000us

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 8.0SMDJ26CA, 8.0SMDJ12A. Please refer to the document for exact specifications by model.

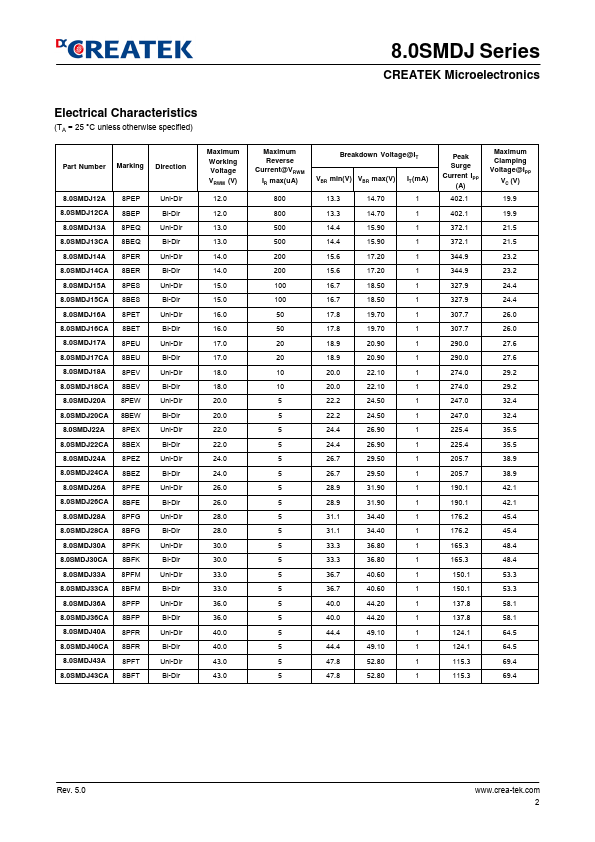

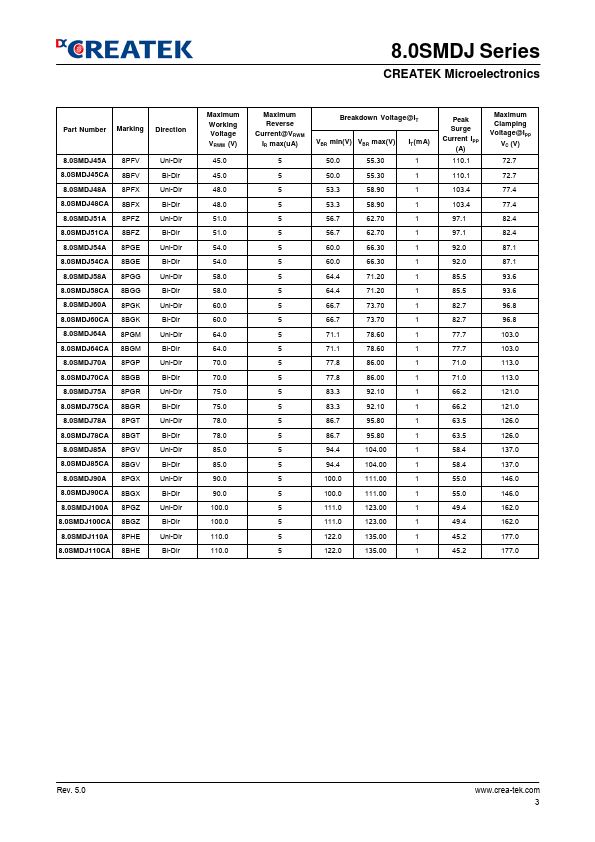

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
8.0SMDJ26CA, 8.0SMDJ12A
Manufacturer
CREATEK
File Size
0.98 MB
Datasheet
8.0SMDJ12A-CREATEK.pdf
Description
Power TVS
Note
This datasheet PDF includes multiple part numbers: 8.0SMDJ26CA, 8.0SMDJ12A.
Please refer to the document for exact specifications by model.
