CRMRBTU0203AD Datasheet, Mosfet, CRM Microelectronics

CRMRBTU0203AD Features

  • Mosfet l 20V, 50A D1 D2 RDS(ON) Typ = 3.8mΩ @ VGS = 4.5V RDS(ON) Typ = 4.9mΩ @ VGS = 2.5V l Advanced Trench Technology s l Excellent RDS(ON) and Low Gate Charge ic l Lead Free n l 100% UIS

PDF File Details

Part number:

CRMRBTU0203AD

Manufacturer:

CRM Microelectronics

File Size:

1.23MB

Download:

📄 Datasheet

Description:

Dual n-channel power mosfet. Features l 20V, 50A D1 D2 RDS(ON) Typ = 3.8mΩ @ VGS = 4.5V RDS(ON) Typ = 4.9mΩ @ VGS = 2.5V l Advanced Trench Technology s l Exc

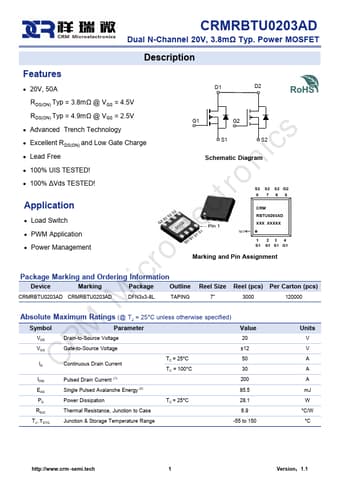

Datasheet Preview: CRMRBTU0203AD 📥 Download PDF (1.23MB)
Page 2 of CRMRBTU0203AD Page 3 of CRMRBTU0203AD

CRMRBTU0203AD Application

  • Applications including compliance with all laws, regulations and safety requirements or standards. “Typical” parameters which provided in datasheet
