CRMRTL0310AD Datasheet, MOSFET, CRM Microelectronics

CRMRTL0310AD Features

  • Mosfet l 30V, 25A RDS(ON) Typ= 9mΩ @ VGS = 10V RDS(ON) Typ= 13mΩ @ VGS = 4.5V l Advanced Trench Technology l Excellent RDS(ON) and Low Gate Charge Applications l Load Switch l PWM Application

PDF File Details

Part number:

CRMRTL0310AD

Manufacturer:

CRM Microelectronics

File Size:

1.14MB

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mosfet. CRMRTL0310AD N-channel Enhancement Mode Power MOSFET Features l 30V, 25A RDS(ON) Typ= 9mΩ @ VGS = 10V RDS(ON) Typ= 13mΩ @ VGS = 4.

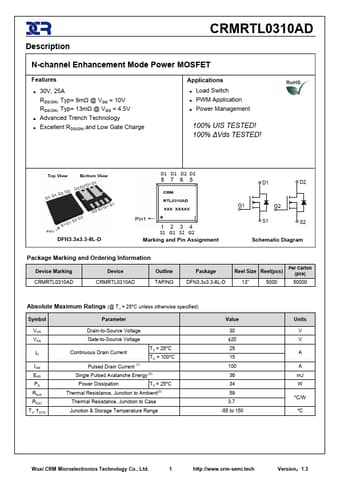

Datasheet Preview: CRMRTL0310AD 📥 Download PDF (1.14MB)
Page 2 of CRMRTL0310AD Page 3 of CRMRTL0310AD

CRMRTL0310AD Application

  • Applications l Load Switch l PWM Application l Power Management 100% UIS TESTED! 100% ΔVds TESTED! D1 D1 D2 D2 D1 D2 DFN3.3x3.3-8L-D S1 G1 S2 G
