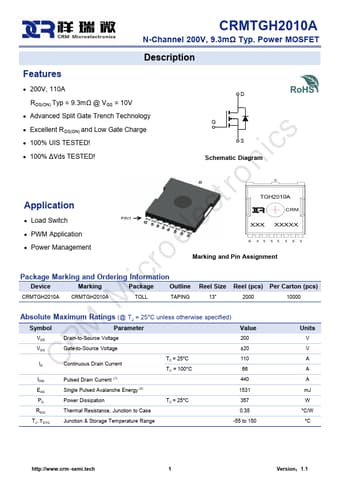

CRMTGH2010A Features
* l 200V, 110A D RDS(ON) Typ = 9.3mΩ @ VGS = 10V l Advanced Split Gate Trench Technology l Excellent RDS(ON) and Low Gate Charge s l 100% UIS TESTED! ic l 100% ΔVds TESTED! G S Schematic Diagram tron Application c l Load Switch le l PWM Application e l Power Management Marking and Pin Assignment
CRMTGH2010A-CRMMicroelectronics_removed.pdf
Datasheet Details
CRMTGH2010A, CRMTGH2010A-CRMMicroelectronics
CRM Microelectronics
1.51 MB
N-channel power mosfet.
This datasheet PDF includes multiple part numbers: CRMTGH2010A, CRMTGH2010A-CRMMicroelectronics.
Please refer to the document for exact specifications by model.
