CRMT6004E1

600V 5A 3-phase IPM

CR Micro

CRMT6004E1 Features

* 600V 3-phase inverter including high voltage gate drivers

* HVIC Temperature-Sensing Built-In for temperature Monitoring

* Works with 3.3V/5V MCU, Active-High interface

* HVIC for Under-voltage Protection

* Integrated bootstrap functionality

* Isolat

CRMT6004E1 General Description

CRMT6004E1 is 3-phase Integrated Power Modules (IPM) designed for advanced appliance motor drive applications such as energy efficient fans and pumps. This module Integrated 6 fast recovery MOSFETs and 3 high voltage gate drivers in a familiar package. This module is optimized for low EMI character.

CRMT6004E1 Datasheet (274.94 KB)

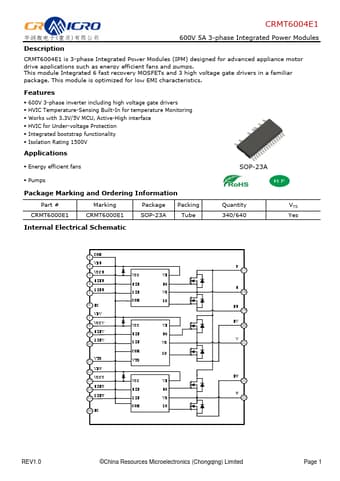

CRMT6004E1 Datasheet Preview — Preview of CRMT6004E1 PDF

Datasheet Details

Part number:

CRMT6004E1

Manufacturer:

CR Micro

File Size:

274.94 KB

Description:

600v 5a 3-phase ipm.
