Ci24R1 Datasheet - CSM

Ci24R1 Ultra-low-cost high-performance 2.4GHz GFSK wireless transceiver

Ci24R1 2.4GHz GFSK 2.4GHz ISM ：GFSK/FSK ：2Mbps/1Mbps/250Kbps BLE4.2 PHY&MAC ：2uA ： ≤ 160uS PSRR LDO ：2.1-3.6V ：-80dBm @2MHz ：11dBm （2Mbps）：20mA 10MHz SPI ARQ 1bit RSSI , SOP8 、 、 、 CSN 1 SCK 2 DATA/IRQ 3 XC1 4 Ci24R1 8 VSS 7 ANT 6 VDD 5 XC2 PA Transmitter RFP Power Management RFN LNA Receiver GFSK/FSK Modulator RF PLL GFSK/FSK Demod.

Ci24R1 Datasheet (564.22 KB)

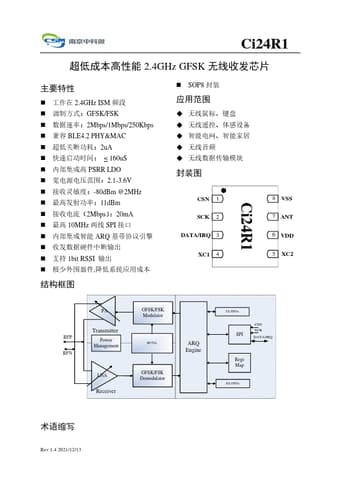

Preview of Ci24R1 PDF
Ci24R1 Datasheet Preview Page 2 Ci24R1 Datasheet Preview Page 3

Datasheet Details

Part number:

Ci24R1

Manufacturer:

CSM

File Size:

564.22 KB

Description:

Ultra-low-cost high-performance 2.4ghz gfsk wireless transceiver.
