CI20T120P - 20A 1200V Field Stop Trench IGBT

CITC

📥 Download Datasheet

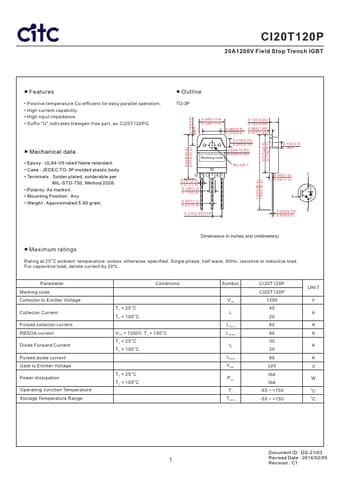

CI20T120P Datasheet Preview — Preview of CI20T120P PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CI20T120P
Manufacturer	CITC
File Size	419.68 KB
Description	20A 1200V Field Stop Trench IGBT
Datasheet	CI20T120P-CITC.pdf

CI20T120P Product details

Features

s.
Positive temperature Co-efficient for easy parallel operation.
High current capability.
High input impedance.
Suffix "G" indicates Halogen-free part, ex. CI20T120PG.
Mechanical data.
Epoxy : UL94-V0 rated flame retardant.
Case : JEDEC TO-3P molded plastic body.
Terminals : Solder plated, solderable per MIL-STD-750, Method 2026.
Polarity: As marked.
Mounting Position : Any.
Weight : Approxima.
