Si24R1 Datasheet - CSM

Si24R1 Ultra-low power high-performance 2.4GHz GFSK wireless transceiver

Si24R1 2.4GHz GFSK 2.4GHz ISM ：GFSK/FSK ：2Mbps/1Mbps/250Kbps ：1uA ：15uA ：-83dBm @2Mbps ：7dBm （2Mbps）：15mA (2Mbps): 12mA（0dBm) PSRR LDO ：1.9-3.6V I/O :1.9-5.25V ： ≤ 130uS 10MHz SPI ARQ 1bit RSSI ：16MHz±60ppm , QFN20 COB CE CSN SCK MOSI MISO 、 、 RFID 、 VCC VSS RFN RFP VDD_PA 15 14 13 12 11 IREF 16 10 XI.

Si24R1-CSM.pdf

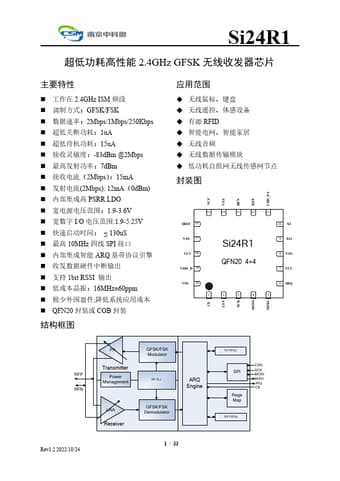

Preview of Si24R1 PDF
Si24R1 Datasheet Preview Page 2 Si24R1 Datasheet Preview Page 3

Datasheet Details

Part number:

Si24R1

Manufacturer:

CSM

File Size:

779.25 KB

Description:

Ultra-low power high-performance 2.4ghz gfsk wireless transceiver.
