CNY17-3, CNY17-1 - Phototransistor Optocoupler

CT Micro

CNY17-3 Datasheet Preview — This datasheet PDF includes multiple part numbers: CNY17-3, CNY17-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CNY17-3, CNY17-1
Manufacturer	CT Micro
File Size	1.57 MB
Description	Phototransistor Optocoupler
Datasheet	CNY17-1-CTMicro.pdf
Note	This datasheet PDF includes multiple part numbers: CNY17-3, CNY17-1. Please refer to the document for exact specifications by model.

CNY17-3 Product details

Description

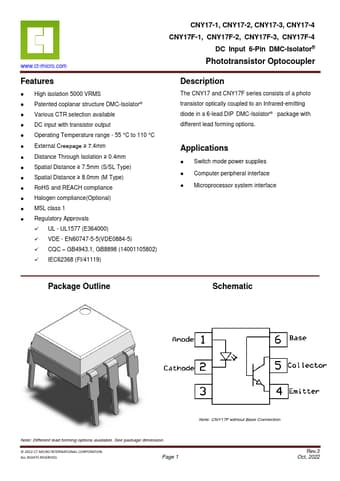

The CNY17 and CNY17F series consists of a photo transistor optically coupled to an Infrared-emitting diode in a 6-lead DIP DMC-Isolator® package with different lead forming options. Switch mode power supplies Computer peripheral interface Microprocessor system interface Package Outline Schematic Note: Different lead forming options available.See package dimension.© 2022 CT MICRO INTERNATIONAL CORPORATION ALL RIGHTS RESERVED.Page 1 Note: CNY17F without Base

Features

High isolation 5000 VRMS.
Patented coplanar structure DMC-Isolator®.
Various CTR selection available.
DC input with transistor output.
Operating Temperature range - 55 °C to 110 °C.
External Creepage ≥ 7.4mm.
Distance Through Isolation ≥ 0.4mm.
Spatial Distance ≥ 7.5mm (S/SL Type).
Spatial Distance ≥ 8.0mm (M Type).
RoHS and REACH compliance.
Halogen compliance(Optional).
MSL class 1.
Regulatory Approvals.
UL - UL1577 (E3.
