CNY17F-3 - Phototransistor Optocoupler

This page provides the datasheet information for the CNY17F-3, a member of the CNY17-1 Phototransistor Optocoupler family.

Datasheet Summary

Description

The CNY17 and CNY17F series consists of a photo transistor optically coupled to an Infrared-emitting diode in a 6-lead DIP DMC-Isolator® package with different lead forming options.

Switch mode power supplies Computer peripheral interface Microprocessor system interfac

Features

  • High isolation 5000 VRMS.
  • Patented coplanar structure DMC-Isolator®.
  • Various CTR selection available.
  • DC input with transistor output.
  • Operating Temperature range - 55 °C to 110 °C.
  • External Creepage ≥ 7.4mm.
  • Distance Through Isolation ≥ 0.4mm.
  • Spatial Distance ≥ 7.5mm (S/SL Type).
  • Spatial Distance ≥ 8.0mm (M Type).
  • RoHS and REACH compliance.
  • Halogen compliance(Optional).
  • MSL class 1.
  • Regulatory Approvals.
  • UL - UL1577 (E3.

📥 Download Datasheet

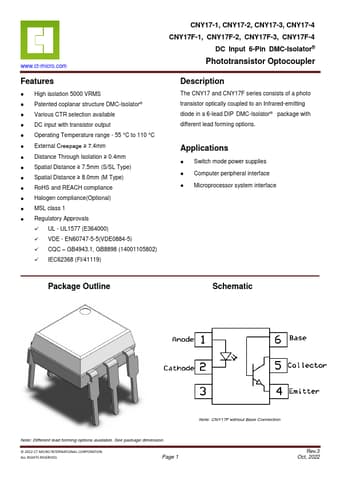

Datasheet preview – CNY17F-3

Datasheet Details

Part number CNY17F-3
Manufacturer CT Micro
File Size 1.57 MB
Description Phototransistor Optocoupler
Datasheet download datasheet CNY17F-3 Datasheet
Additional preview pages of the CNY17F-3 datasheet.

📁 Similar Datasheet

  • CNY17F-3 - 6-PIN DIP OPTOCOUPLERS (Fairchild Semiconductor)
  • CNY17F-3 - 6-PIN DIP OPTOCOUPLERS (QT Optoelectronics)
  • CNY17F-3 - ISOLATOR PHOTOTRANSISTOR (ISOCOM COMPONENTS)
  • CNY17F-3 - 6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER (Everlight)
  • CNY17F-3 - Photocoupler (LITEON)
  • CNY17F-3X - NON-BASE LEAD OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR (ISOCOM COMPONENTS)
  • CNY17F-1 - 6-PIN DIP OPTOCOUPLERS (QT Optoelectronics)
  • CNY17F-1 - 6-PIN DIP OPTOCOUPLERS (Fairchild Semiconductor)
  • CNY17F-1 - ISOLATOR PHOTOTRANSISTOR (ISOCOM COMPONENTS)
  • CNY17F-1 - Photocoupler (LITEON)
Other Datasheets by CT Micro
  • CNY17F-1 - Phototransistor Optocoupler
  • CNY17F-2 - Phototransistor Optocoupler
  • CNY17F-4 - Phototransistor Optocoupler
  • CNY17-1 - Phototransistor Optocoupler
  • CNY17-2 - Phototransistor Optocoupler
  • CNY17-3 - Phototransistor Optocoupler
  • CNY17-4 - Phototransistor Optocoupler

Full PDF Text Transcription

Click to expand full text
www.ct-micro.com Features  High isolation 5000 VRMS  Patented coplanar structure DMC-Isolator®  Various CTR selection available  DC input with transistor output  Operating Temperature range - 55 °C to 110 °C  External Creepage ≥ 7.4mm  Distance Through Isolation ≥ 0.4mm  Spatial Distance ≥ 7.5mm (S/SL Type)  Spatial Distance ≥ 8.0mm (M Type)  RoHS and REACH compliance  Halogen compliance(Optional)  MSL class 1  Regulatory Approvals  UL - UL1577 (E364000)  VDE - EN60747-5-5(VDE0884-5)  CQC – GB4943.
