CNY17F - PHOTOTRANSISTOR NO BASE CONNECTION OPTOCOUPLER

Datasheet Summary

Description

The CNY17F is an optocoupler consisting of a Gallium Arsenide infrared emitting diode optically coupled to a silicon planar phototransistor detector in a plastic plug-in DIP-6 package.

The coupling device is suitable for signal transmission between two electrically separated circuits.

Features

  • High Current Transfer Ratio CNY17F-1, 40-80% CNY17F-2, 63-125% CNY17F-3, 100-200% CNY17F-4, 160-320%.
  • Breakdown Voltage, 5300 VACRMS.
  • High Collector-Emitter Voltage.
  • VCEO=70 V.
  • No Base Terminal Connection for Improved Common Mode Interface Immunity.
  • Field-Effect Stable by TRIOS.
  • Long Term Stability.
  • Industry Standard Dual-in-Line Package.
  • Underwriters Lab File #E52744 V.
  • VDE #0884, Available with Opti.

📥 Download Datasheet

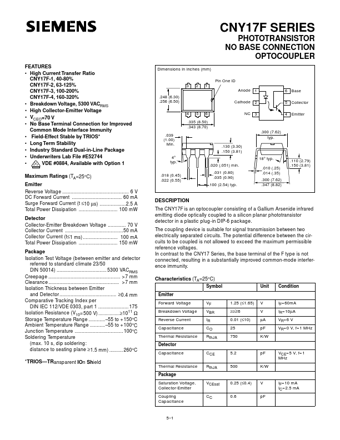

Datasheet preview – CNY17F

Datasheet Details

Part number CNY17F
Manufacturer Siemens Semiconductor Group
File Size 210.49 KB
Description PHOTOTRANSISTOR NO BASE CONNECTION OPTOCOUPLER
Datasheet download datasheet CNY17F Datasheet
Additional preview pages of the CNY17F datasheet.

📁 Similar Datasheet

  • CNY17F - Optocoupler (Vishay)
  • CNY17F-1 - Phototransistor Optocoupler (CT Micro)
  • CNY17F-1 - 6-PIN DIP OPTOCOUPLERS (QT Optoelectronics)
  • CNY17F-1 - 6-PIN DIP OPTOCOUPLERS (Fairchild Semiconductor)
  • CNY17F-1 - ISOLATOR PHOTOTRANSISTOR (ISOCOM COMPONENTS)
  • CNY17F-1 - Photocoupler (LITEON)
  • CNY17F-1 - 6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER (Everlight)
  • CNY17F-1X - NON-BASE LEAD OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR (ISOCOM COMPONENTS)
  • CNY17F-2 - Phototransistor Optocoupler (CT Micro)
  • CNY17F-2 - 6-PIN DIP OPTOCOUPLERS (Fairchild Semiconductor)
Other Datasheets by Siemens Semiconductor Group
  • CNY17FG - single channel phototransistor optocoupler
  • CNY17 - TRIOS PHOTOTRANSISTOR OPTOCOUPLER

Full PDF Text Transcription

Click to expand full text
CNY17F SERIES PHOTOTRANSISTOR NO BASE CONNECTION OPTOCOUPLER FEATURES • High Current Transfer Ratio CNY17F-1, 40-80% CNY17F-2, 63-125% CNY17F-3, 100-200% CNY17F-4, 160-320% • Breakdown Voltage, 5300 VACRMS • High Collector-Emitter Voltage • VCEO=70 V • No Base Terminal Connection for Improved Common Mode Interface Immunity • Field-Effect Stable by TRIOS* • Long Term Stability • Industry Standard Dual-in-Line Package • Underwriters Lab File #E52744 V • VDE #0884, Available with Option 1 D E Dimensions in inches (mm) Pin One ID 3 .248 (6.30) .256 (6.50) 4 5 6 2 1 Anode 1 Cathode 2 NC 3 6 Base 5 Collector 4 Emitter .335 (8.50) .343 (8.70) .039 (1.00) Min. 4° typ. .018 (0.45) .022 (0.55) .300 (7.62) typ. .130 (3.30) .150 (3.81) 18° typ. .020 (.051) min. .031 (0.80) .035 (0.90) .100 (2.
