CNY17F-3X - NON-BASE LEAD OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR

This page provides the datasheet information for the CNY17F-3X, a member of the CNY17F-1X NON-BASE LEAD OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR family.

Datasheet Summary

Description

TheCNY17F-1,CNY17F-2,CNY17F-3,CNY17F-4 series of optically coupled isolators consist of infrared light emitting diode and NPN silicon photo transistor in a standard 6 pin dual in line plastic package with the base pin unconnected.

Features

Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High BVCEO (70V min) l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l Base pin unconnected for improved noise immunity in high EMI environment.

Datasheet Details

Part number	CNY17F-3X
Manufacturer	ISOCOM COMPONENTS
File Size	93.14 KB
Description	NON-BASE LEAD OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR
Datasheet	CNY17F-3X Datasheet
Additional preview pages of the CNY17F-3X datasheet.

📁 Similar Datasheet

CNY17F-3 - Phototransistor Optocoupler (CT Micro)

CNY17F-3 - 6-PIN DIP OPTOCOUPLERS (Fairchild Semiconductor)

CNY17F-3 - 6-PIN DIP OPTOCOUPLERS (QT Optoelectronics)

CNY17F-3 - 6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER (Everlight)

CNY17F-3 - Photocoupler (LITEON)

CNY17F-1 - Phototransistor Optocoupler (CT Micro)

CNY17F-1 - 6-PIN DIP OPTOCOUPLERS (QT Optoelectronics)

CNY17F-1 - 6-PIN DIP OPTOCOUPLERS (Fairchild Semiconductor)

CNY17F-1 - Photocoupler (LITEON)

CNY17F-1 - 6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER (Everlight)

Full PDF Text Transcription

Click to expand full text

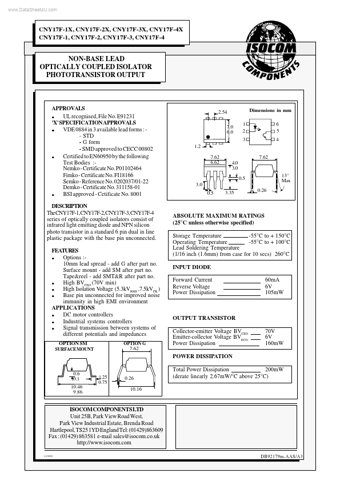

www.DataSheet4U.com CNY17F-1X, CNY17F-2X, CNY17F-3X, CNY17F-4X CNY17F-1, CNY17F-2, CNY17F-3, CNY17F-4 NON-BASE LEAD OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR OUTPUT APPROVALS l UL recognised, File No. E91231 'X' SPECIFICATION APPROVALS l VDE 0884 in 3 available lead forms : - STD - G form - SMD approved to CECC 00802 l Certified to EN60950 by the following Test Bodies :Nemko - Certificate No. P01102464 Fimko - Certificate No. FI18166 Semko - Reference No. 0202037/01-22 Demko - Certificate No. 311158-01 l BSI approved - Cetificate No. 8001 DESCRIPTION TheCNY17F-1,CNY17F-2,CNY17F-3,CNY17F-4 series of optically coupled isolators consist of infrared light emitting diode and NPN silicon photo transistor in a standard 6 pin dual in line plastic package with the base pin unconnected.
