IRC3020N13-B20

Infrared Emitter

IRC3020N13-B20 Features

* Small double-end package

* Viewing Angle = 600

* High radiant intensity

* High reliability

* Good spectral matching to Si photo detector

* RoHS compliance Applications

* Infrared sensor Description The IRC3020N13-B20 is a GaAlAs infrared LED housed in a miniature SMD

IRC3020N13-B20 General Description

The IRC3020N13-B20 is a GaAlAs infrared LED housed in a miniature SMD package. The device has a peak wavelength of 940nm LED spectrally matched with phototransistor or photodiode. Package Outline Schematic Anode Cathode CT Micro Proprietary & Confidential Page 1 Rev 0(Preliminary) Feb, 2014 .

IRC3020N13-B20 Datasheet (721.79 KB)

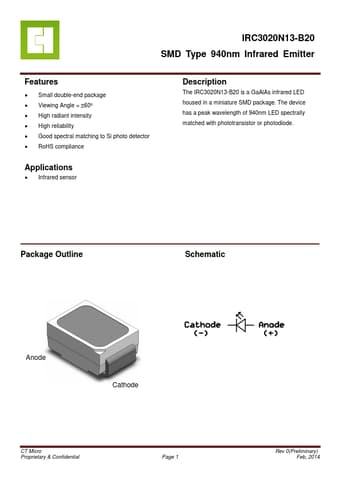

Preview of IRC3020N13-B20 PDF

Datasheet Details

Part number:

IRC3020N13-B20

Manufacturer:

CT Micro

File Size:

721.79 KB

Description:

Infrared emitter.
