RS2BB, RS2AB - Surface Mount Fast Recovery Rectifiers

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS2BB, RS2AB. Please refer to the document for exact specifications by model.

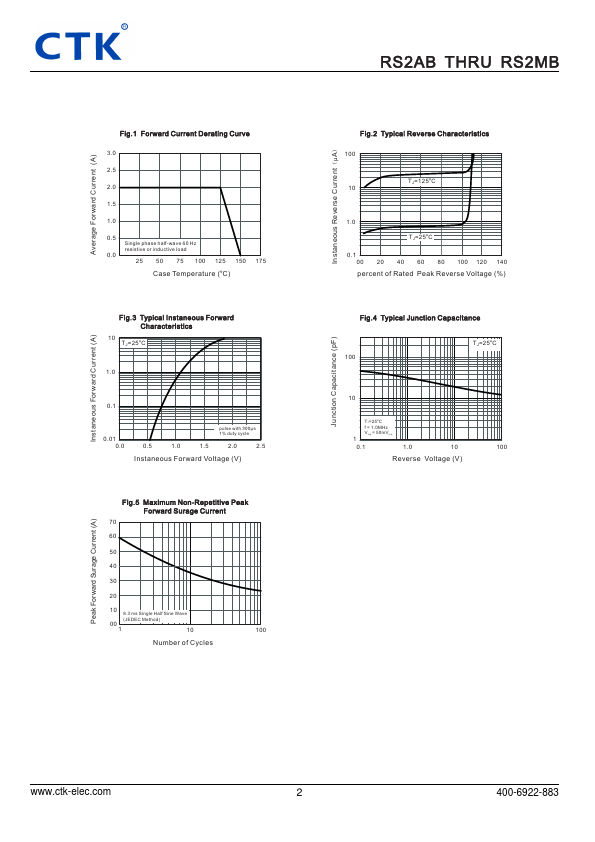

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number RS2BB, RS2AB
Manufacturer CTK
File Size 203.82 KB
Description Surface Mount Fast Recovery Rectifiers
Datasheet download datasheet RS2AB-CTK.pdf
Note This datasheet PDF includes multiple part numbers: RS2BB, RS2AB.
Please refer to the document for exact specifications by model.

RS2BB Product details

Description

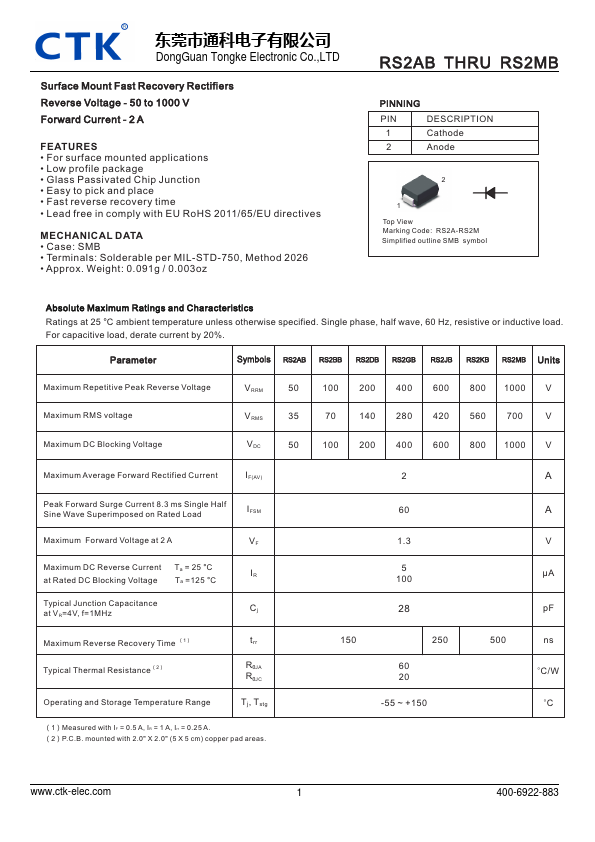

1 Cathode 2 Anode 2 1 Top View Marking Code: RS2A-RS2M Simplified outline SMB symbol Absolute Maximum Ratings and Characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60 Hz, resistive or inductive load.For capacitive load, derate current by 20%.Parameter Symbols RS2AB RS2BB RS2DB RS2GB RS2JB RS2KB RS2MB Units Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35 70 140 280 420

Features
