RS2B

Surface Mount Fast Recovery Rectifier

RS2B Features

* Glass passivated chip junction

* Built in strain relief

* Fast switching speed for high efficiency

* High temperature soldering guaranteed: 260℃/10 seconds, 0.375” (9.5mm) lead length

* Also available in the SMA package, add suffix “A”, i.e.RS2AA

* RoHS and REACH Complianc

RS2B General Description

RS2A RS2B RS2D RS2G RS2H RS2K RS2M Unit Conditions VRRM VRMS VDC Max Recurrent Peak Reverse Voltage Max RMS Voltage Max DC Blocking Voltage 50 100 200 400 600 800 1000 V 35 70 140 280 420 560 700 V 50 100 200 400 600 800 1000 V I(AV) Max Av.

RS2B Datasheet (543.14 KB)

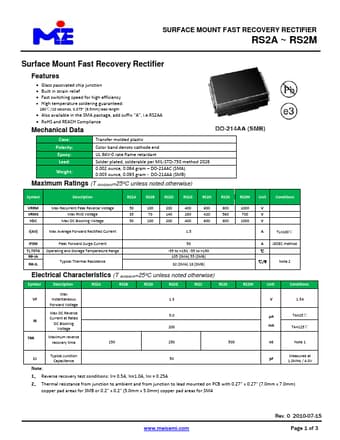

Preview of RS2B PDF

Datasheet Details

Part number:

RS2B

Manufacturer:

MEI SEMI

File Size:

543.14 KB

Description:

Surface mount fast recovery rectifier.
