S5GBF - Surface Mount General Purpose Silicon Rectifiers

S5GBF Description

DongGuan Tongke Electronic Co.,LTD Surface Mount General Purpose Silicon Rectifiers Reverse Voltage - 50 to 1000 V Forward Current - 5 A .
1 Cathode 2 Anode 1 2 Top View Marking Codeļ¼š S5AB-S5MB Simplified outline SMBF and symbol Maximum Ratings and Electrical characteristics Ratin.

S5GBF Applications

* Low profile package
* Glass Passivated Chip Junction
* Easy to pick and place
* Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA
* Case: SMBF
* Terminals: Solderable per MIL-STD-750, Method 2026
* Approx. Weight: 57mg /

📥 Download Datasheet

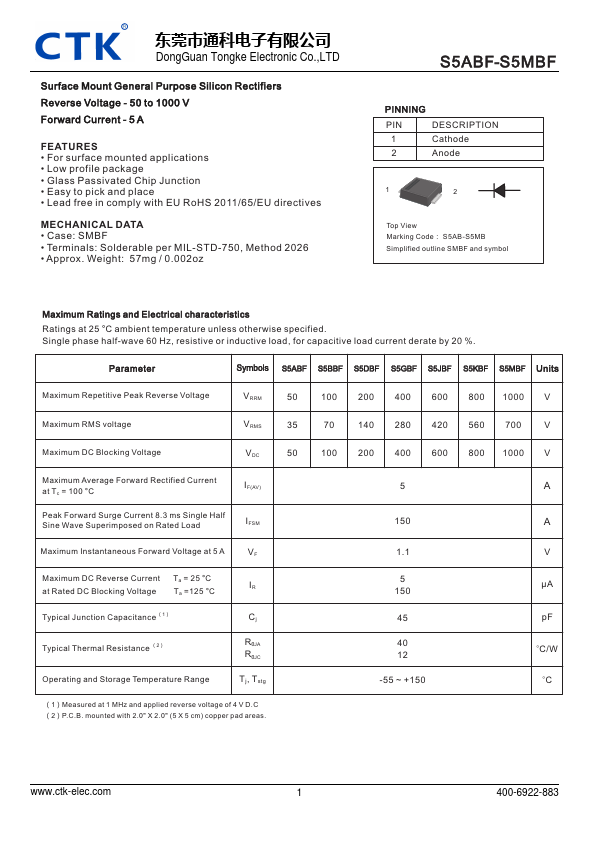

Preview of S5GBF PDF

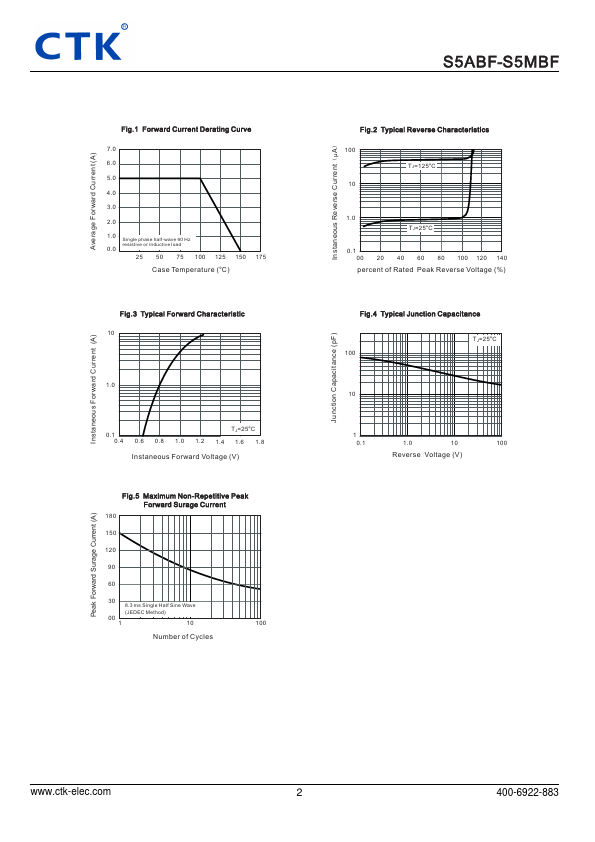

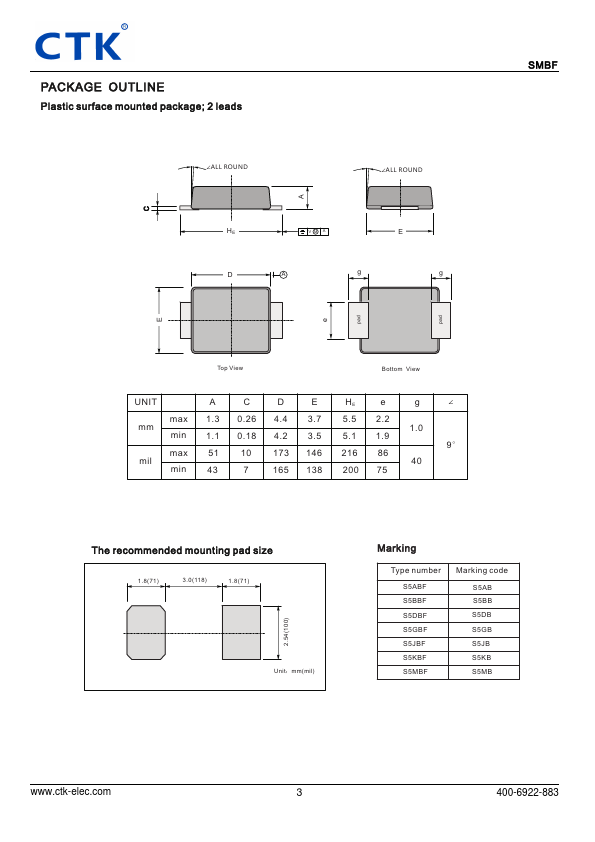

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S5GBF
Manufacturer
CTK
File Size
232.88 KB
Datasheet
S5GBF-CTK.pdf
Description
Surface Mount General Purpose Silicon Rectifiers
