V7803-1000 - NON-ISOLATED SWITCHING REGULATOR

CUI

📥 Download Datasheet

V7803-1000 Datasheet Preview — Preview of V7803-1000 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	V7803-1000
Manufacturer	CUI
File Size	1.70 MB
Description	NON-ISOLATED SWITCHING REGULATOR
Datasheet	V7803-1000-CUI.pdf

V7803-1000 Product details

Description

NON-ISOLATED SWITCHING REGULATOR

Features

1 A current output.
extremely high efficiency up to 97%.
no heat sink required.
pin compatible to LM78XX linear regulators.
available in straight and right angle SIP packages.
low ripple and noise.
short circuit protection, thermal shutdown.

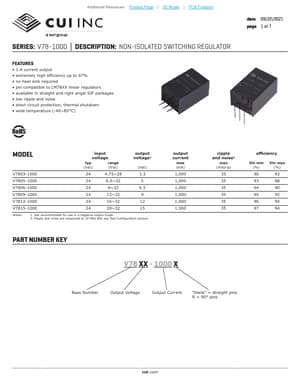

wide temperature (-40~85°C) date 09/22/2021 page 1 of 7 RoHS MODEL input voltage typ (Vdc) range (Vdc) output voltage1 (Vdc) V7803-1000 24 4.75~28 3.3 V7805-1000 24 6.5~3.
