1SMA5950B, 1SMA5913B SURFACE MOUNT SILICON ZENER DIODE

1SMA5950B Description

.114(2.90) .098(2.50) RoHS compliant 1SMA5913B thru 1SMA5957B SURFACE MOUNT SILICON ZENER DIODE VOLTAGE: 3.3 to 240 Volts POWER: 1.5 Watts ® FEATUR.

1SMA5950B Applications

* in order to optimize board space.
* Low profile package
* Built-in strain relief
* Glass passivated junction
* Low inductance
* Typical IR less than 1.0µA above 12V
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1SMA5950B, 1SMA5913B. Please refer to the document for exact specifications by model.

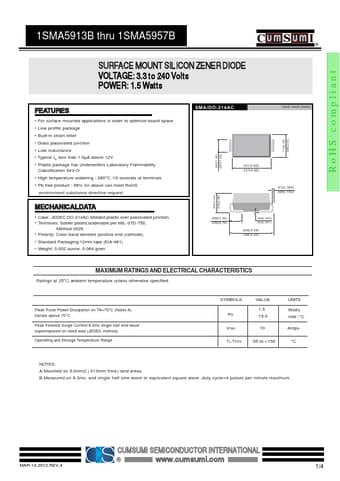

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1SMA5950B, 1SMA5913B
Manufacturer
CUMSUMI
File Size
338.81 KB
Datasheet
1SMA5913B-CUMSUMI.pdf
Description
SURFACE MOUNT SILICON ZENER DIODE
Note
This datasheet PDF includes multiple part numbers: 1SMA5950B, 1SMA5913B.
Please refer to the document for exact specifications by model.
