1SMA5950A

SURFACE MOUNT SILICON ZENER DIODES

1SMA5950A Features

* :

* Complete Voltage Range 3.3 to 200 Volts

* High peak reverse power dissipation

* High reliability

* Low leakage current

* Pb / RoHS Free MECHANICAL DATA :

* Case : SMA Molded plastic

* Epoxy : UL94V-0 rate flame retardant

* Polarity : Color band denotes cathode end

1SMA5950A Datasheet (309.44 KB)

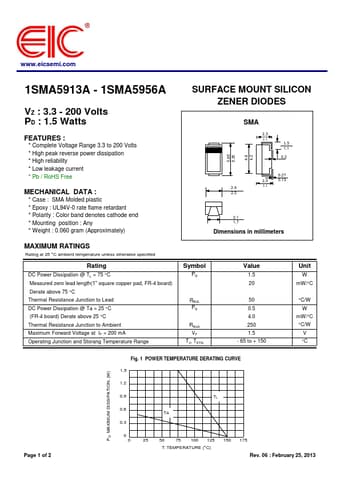

Preview of 1SMA5950A PDF

Datasheet Details

Part number:

1SMA5950A

Manufacturer:

EIC

File Size:

309.44 KB

Description:

Surface mount silicon zener diodes.
