BAS70S3 - Small Signal Schottky (double) diodes

BAS70S3 Description

CYStech Electronics Corp.Small Signal Schottky (double) diodes Spec.No.: C248S3 Issued Date : 2012.07.09 Revised Date : Page No.: 1/6 BAS70S3/BA.
Planar silicon Schottky barrier diodes encapsulated in a SOT-323 very small plastic SMD package.

BAS70S3 Features

* Guard ring protected
* Low forward voltage drop
* Very small plastic SMD package

BAS70S3 Applications

* Ultra high-speed switching
* Voltage clamping
* Protection circuits

📥 Download Datasheet

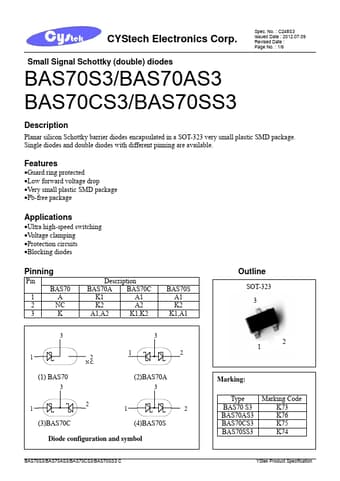

Preview of BAS70S3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAS70S3
Manufacturer
CYStech Electronics
File Size
314.52 KB
Datasheet
BAS70S3-CYStechElectronics.pdf
Description
Small Signal Schottky (double) diodes
