LM339PC - Quad Differential Comparator

Datasheet Summary

Description

The LM339PC consists of four independent voltage comparators, designed specifically to operate from a single power over a wide voltage range.

Features

Single or dual supply operation.
Wide operating supply range(VCC=2V~36V).
Input common-mode voltage includes ground.
Low supply current drain ICC=0.8mA(typical).
Low input bias current Ibias=25nA(typical).
Output compatible with TTL, DTL and CMOS logic system. Pin Configurations OUT 3 14 OUT 4 13 GND 12 IN 4 (+) 11 IN 4(-) 10 IN 3(+) 9 IN 3(-) 8 Pin1: OUT 2 Pin2: OUT 1 Pin3: VCC Pin4: IN 1(-) Pin5: IN 1 (+) Pin6: IN 2 (-) Pin8: IN 3.

Datasheet Details

Part number	LM339PC
Manufacturer	CYStech Electronics
File Size	538.40 KB
Description	Quad Differential Comparator
Datasheet	LM339PC Datasheet
Additional preview pages of the LM339PC datasheet.

📁 Similar Datasheet

LM339PT - Comparators (Rohm)

LM339 - Quad Single Supply Comparators (Motorola Inc)

LM339 - Quad voltage comparator (NXP)

LM339 - Low Power Low Offset Voltage Quad Comparators (National Semiconductor)

LM339 - Low Power Low Offset Voltage Quad Comparators (ART CHIP)

LM339 - Low-power quad voltage comparators (STMicroelectronics)

LM339 - Quad Differential Comparators (Texas Instruments)

LM339 - QUAD Comparator (HTC)

LM339 - QUAD DIFFERENTIAL COMPARATOR (UTC)

LM339 - Single Supply Quad Comparators (ON Semiconductor)

Full PDF Text Transcription

Click to expand full text

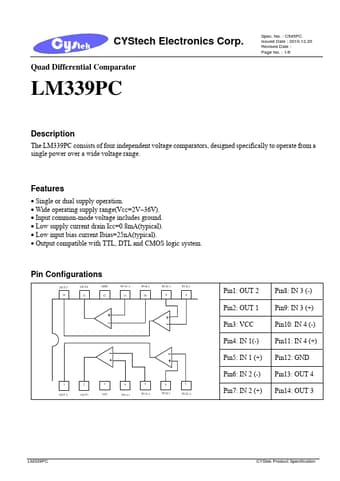

CYStech Electronics Corp. Quad Differential Comparator Spec. No. : C545PC Issued Date : 2010.12.20 Revised Date : Page No. : 1/6 LM339PC Description The LM339PC consists of four independent voltage comparators, designed specifically to operate from a single power over a wide voltage range. Features • Single or dual supply operation. • Wide operating supply range(VCC=2V~36V). • Input common-mode voltage includes ground. • Low supply current drain ICC=0.8mA(typical). • Low input bias current Ibias=25nA(typical). • Output compatible with TTL, DTL and CMOS logic system.
