LM6206N3 Datasheet - CYStech Electronics

Low Dropout CMOS Voltage Regulators

LM6206N3 Features

* Low dropout voltage

* Maximum output current 250mA

* Output voltage : 1.5V~3.3V (0.1V increments)

* Output voltage accuracy : tolerance ±2%

* Low temperature coefficient Applications

* Battery powered equipment voltage sources

* Cameras and video cameras

* Portable AV sy

LM6206N3 General Description

The LM6206N3 series is a set of three-terminal high current low voltage regulator implemented in CMOS technology. They can deliver 250mA output current and allow an input voltage as high as 6.5V. CMOS technology ensures low voltage drop and low quiescent current. They are available with several fixe.

LM6206N3 Datasheet (232.88 KB)

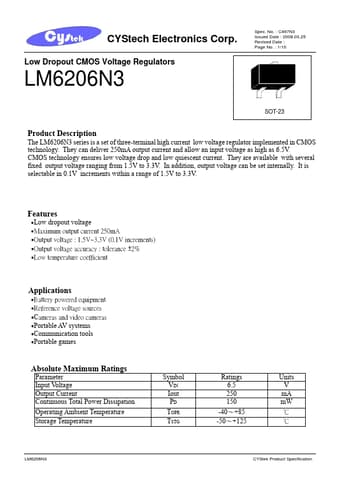

LM6206N3 Datasheet Preview — Preview of LM6206N3 PDF

Datasheet Details

Part number:

LM6206N3

Manufacturer:

CYStech Electronics

File Size:

232.88 KB

Description:

Low dropout cmos voltage regulators.
CYStech Electronics Corp. Low Dropout CMOS Voltage Regulators Spec. No. : C497N3 Issued Date : 2008.03.25 Revised Date : Page No. : 1/10 LM6206N3 SO.
