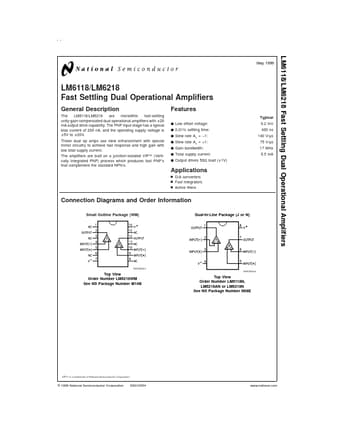

LM6218 Fast Settling Dual Operational Amplifiers

The LM6118/LM6218 are monolithic fast-settling unity-gain-compensated dual operational amplifiers with ±20 mA output drive capability. The PNP input stage has a typical bias current of 200 nA, and the operating supply voltage is ±5V to ±20V. These dual op amps use slew enhancement with special mirro.

LM6218 Features

* j Low offset voltage: j 0.01% settling time: j Slew rate Av =

* 1: j Slew rate Av = +1: j Gain bandwidth: j Total supply current: j Output drives 50Ω load (±1V) Applications n D/A converters n Fast integrators n Active filters Connection Diagrams and Order Information Typical 0.2 mV 400 ns
