LM628

Precision Motion Controller

Texas Instruments

LM628 Features

* 1

* 2 32-bit Position, Velocity, And Acceleration Registers

* Programmable Digital PID Filter with 16-bit Coefficients

* Programmable Derivative Sampling Interval

* 8- or 12-bit DAC Output Data (LM628)

* 8-bit Sign-magnitude PWM Output Data (LM629)

* In

LM628 General Description

The LM628/LM629 are dedicated motion-control processors designed for use with a variety of DC and brushless DC servo motors, and other servomechanisms which provide a quadrature incremental position feedback signal. The parts perform the intensive, real-time computational tasks required for high per.

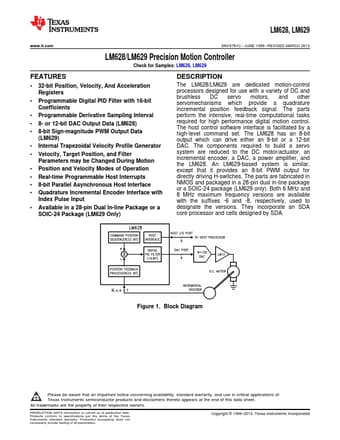

LM628 Datasheet (1.40 MB)

LM628 Datasheet Preview — Preview of LM628 PDF

Datasheet Details

Part number:

LM628

Manufacturer:

Texas Instruments ↗

File Size:

1.40 MB

Description:

Precision motion controller.
LM628, LM629 www.ti.com SNVS781C

* JUNE 1999

* REVISED MARCH 2013 LM628/LM629 Precision Motion Controller Check for Samples: LM628,.
