MTC4503H8 - P- & N-Channel Enhancement Mode Power MOSFET

MTC4503H8 Description

CYStech Electronics Corp.Spec.No.: C384H8 Issued Date : 2015.07.16 Revised Date : 2015.09.03 Page No.: 1/13 N- AND P-Channel Enhancement Mode MO.

MTC4503H8 Features

* Simple drive requirement
* Low on-resistance
* Fast switching speed
* Pb-free lead plating and halogen-free package N-CH 30V 9.4A 27A 13mΩ 17mΩ P-CH -30V -7.8A -22.5A 21mΩ 35mΩ Equivalent Circuit MTC4503H8 Outline Pin 1 DFN5×6 G：Gate S：Source D：Drain Ordering

📥 Download Datasheet

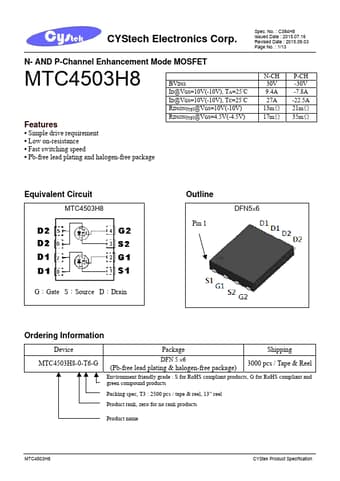

Preview of MTC4503H8 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MTC4503H8
Manufacturer
CYStech Electronics
File Size
540.08 KB
Datasheet
MTC4503H8-CYStechElectronics.pdf
Description
P- & N-Channel Enhancement Mode Power MOSFET
