MTC4503Q8G Datasheet - CYStech Electronics

P- & N-Channel Enhancement Mode Power MOSFET

MTC4503Q8G Features

* Simple drive requirement

* Low on-resistance

* Fast switching speed

* Pb-free package Applications

* Power management in notebook computer, portable equipment and battery powered systems. Equivalent Circuit MTC4503Q8G Outline SOP-8 G：Gate S：Source D：Drai

MTC4503Q8G General Description

The MTC4503Q8G consists of a N-channel and a P-channel enhancement-mode MOSFET in a single SOP-8 package, providing the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The SOP-8 package is universally preferred for all commerc.

MTC4503Q8G Datasheet (491.71 KB)

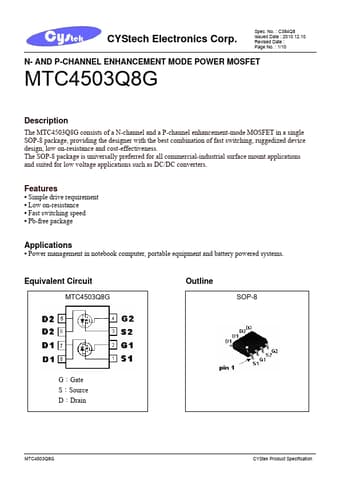

MTC4503Q8G Datasheet Preview — Preview of MTC4503Q8G PDF

Datasheet Details

Part number:

MTC4503Q8G

Manufacturer:

CYStech Electronics

File Size:

491.71 KB

Description:

P- & n-channel enhancement mode power mosfet.
CYStech Electronics Corp. Spec. No. : C384Q8 Issued Date : 2010.12.10 Revised Date : Page No. : 1/10 N- AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET .
