* Small plastic SMD package
* High switching speed: max. 4ns
* Reverse voltage: max. 100V
* Peak forward surge current: max. 500mA.
* Pb-free package Applications
* High-speed switching in thick and thin-film circuits. Ordering Information Device 1S

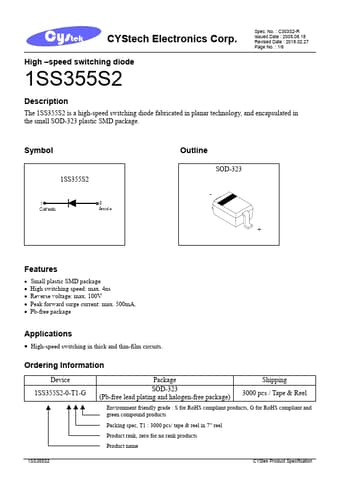

1SS355S2 Datasheet (259.60 KB)
1SS355S2
CYStech
259.60 KB
High-speed switching diode.
CYStech Electronics Corp.
High
*speed switching diode
1SS355S2
Spec. No. : C303S2-R Issued Date : 2005.08.18 Revised Date : 2018.02.27 Page N.
