BSS84S6R - Dual P-Channel MOSFET

Product Overview

CYStech

📥 Download Datasheet

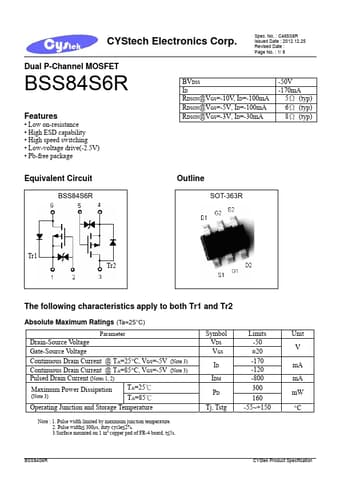

BSS84S6R Dual P-Channel MOSFET by CYStech - Datasheet Preview — Datasheet preview – BSS84S6R

Datasheet Details

Part number	BSS84S6R
Manufacturer	CYStech
File Size	256.59 KB
Description	Dual P-Channel MOSFET
Datasheet	BSS84S6R Datasheet
Additional preview pages of the BSS84S6R datasheet.

Product details

Features

Low on-resistance.
High ESD capability.
High speed switching.
Low-voltage drive(-2.5V).
Pb-free package BVDSS ID RDSON@VGS=-10V, ID=-100mA RDSON@VGS=-5V, ID=-100mA RDSON@VGS=-3V, ID=-30mA -50V -170mA 5Ω (typ) 6Ω (typ) 8Ω (typ) Equivalent Circuit BSS84S6R Outline SOT-363R Tr1 Tr2 The following characteristics apply to both Tr1 and Tr2 Absolute Maximum Ratings (Ta=25°C) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Curr.
