BSS84 - SIPMOS Small-Signal Transistor

Siemens Semiconductor Group

Datasheet Details

Part number	BSS84
Manufacturer	Siemens Semiconductor Group
File Size	73.16 KB
Description	SIPMOS Small-Signal Transistor
Datasheet	BSS84 Datasheet
Additional preview pages of the BSS84 datasheet.

📁 Similar Datasheet

BSS84 - P-Channel MOSFET (JCET)
BSS84 - P-Channel Vertical D-MOS Transistor (GME)
BSS84 - P-channel transistor (NXP)
BSS84 - P-Channel MOSFET (Fairchild Semiconductor)
BSS84 - Small Signal MOSFET (ROHM)
BSS84 - P-Channel MOSFET (Bruckewell)
BSS84 - Small Signal MOSFET (WEITRON)
BSS84 - P-Channel MOSFET (LITE-ON)
BSS84 - Small Signal MOSFET (TAITRON)
BSS84 - P-CHANNEL MOSFET (MCC)

Other Datasheets by Siemens Semiconductor Group

BSS80 - PNP Silicon Switching Transistors (High DC current gain Low collector-emitter saturation voltage)
BSS80B - PNP Silicon Switching Transistors (High DC current gain Low collector-emitter saturation voltage)
BSS80C - PNP Silicon Switching Transistors (High DC current gain Low collector-emitter saturation voltage)
BSS81B - NPN Silicon Switching Transistors (High DC current gain Low collector-emitter saturation voltage)
BSS81C - NPN Silicon Switching Transistors (High DC current gain Low collector-emitter saturation voltage)
BSS82B - PNP Silicon Switching Transistors (High DC current gain Low collector-emitter saturation voltage)
BSS82C - PNP Silicon Switching Transistors (High DC current gain Low collector-emitter saturation voltage)
BSS87 - SIPMOS Small-Signal Transistor

Full PDF Text Transcription

Click to expand full text

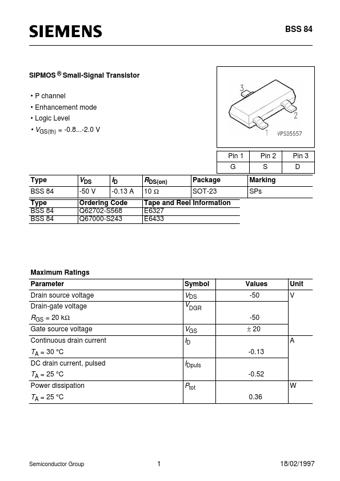

BSS 84 SIPMOS ® Small-Signal Transistor • P channel • Enhancement mode • Logic Level • VGS(th) = -0.8...-2.0 V Pin 1 G Type BSS 84 Type BSS 84 BSS 84 Pin 2 S Marking SPs Pin 3 D VDS -50 V ID -0.13 A RDS(on) 10 Ω Package SOT-23 Ordering Code Q62702-S568 Q67000-S243 Tape and Reel Information E6327 E6433 Maximum Ratings Parameter Drain source voltage Drain-gate voltage Symbol Values -50 -50 Unit V VDS VDGR VGS ID RGS = 20 kΩ Gate source voltage Continuous drain current ± 20 A -0.13 TA = 30 °C DC drain current, pulsed IDpuls -0.52 TA = 25 °C Power dissipation Ptot 0.
